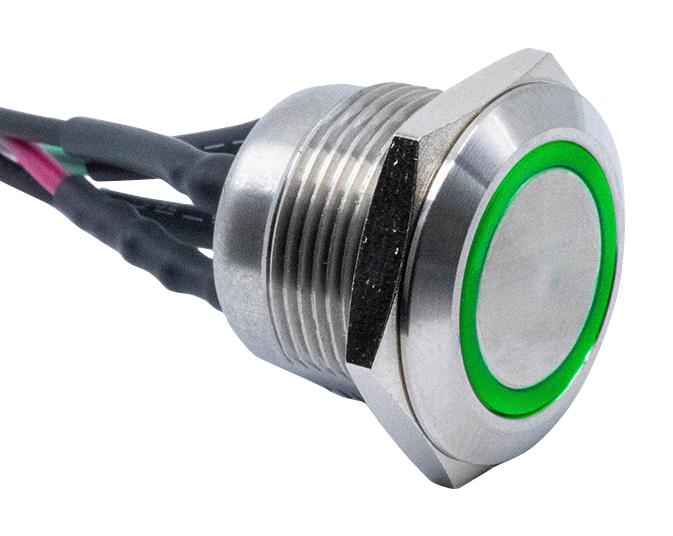

E-SWITCH SV4FW3SS3H1 Anti-Vandal Switch
The SV4 Series Anti-Vandal Switch features a compact design with a 19mm diameter panel cutout, suitable for various control applications. It offers multiple LED illumination options, IP67 moisture protection, and a SPST contact configuration with a 2A, 36VDC electrical rating. The sturdy stainless steel body ensures durability, while the short body design facilitates easy installation in tight spaces. Compatible with panel thicknesses of 1-6mm, it includes soldered wire leads and optional ring or ring & power symbol illumination for enhanced visibility and operational safety.
E-SWITCH SV4FW3SS3H1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mQ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body Material: Stainless Steel
- Lens Options: Multiple LED colors and illumination symbols
- Mounting: Short body design with panel cutout of 19mm
- Wiring: Soldered wire leads, 500mm long
- Environmental: Suitable for industrial environments with high durability requirements
Buy the Stainless Series SV4 Anti-Vandal Switch: SV4FW3SS3H1
Order the SV4 Series anti-vandal switch online today to enjoy swift delivery and reliable performance in demanding control environments. Featuring a compact 19mm diameter with IP67 rating, stainless steel construction, and multiple LED illumination options, this switch ensures durability and visibility. Its short body design allows easy installation in tight spaces, making it ideal for industrial, security, and automation applications. Purchase now for superior quality, easy wiring with soldered leads, and a robust design that withstands harsh conditions for long-lasting service life.
Buy SV4 Series anti-vandal stainless steel switch now and experience unmatched durability, reliable IP67 protective features, and versatile LED illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH SV4FW3SS3H1?
You can click on the BUY or RFQ button to purchase SV4FW3SS3H1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV4FW3SS3H1?
You can download the SV4FW3SS3H1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV4FW3SS3H1?
E-SWITCH
