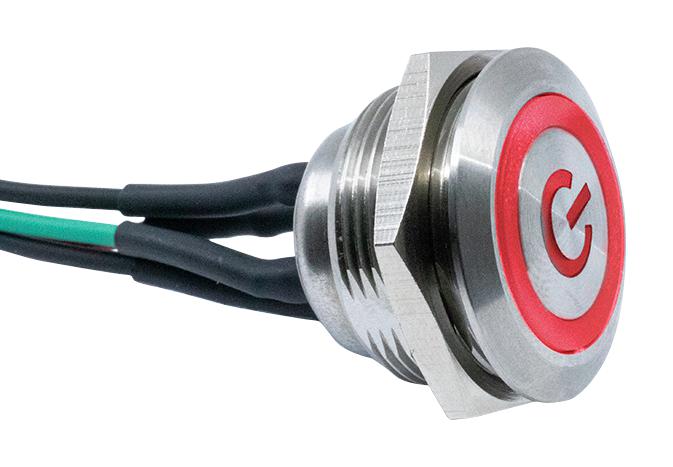

E-SWITCH SV7F23SS311 Anti-Vandal Switch
The SV7 Series Anti-Vandal Switch is a compact, rugged switch designed for industrial applications requiring durability and reliable operation. Featuring a short body design with a 22mm diameter panel cutout, it offers multiple LED illumination options, including ring and ring & power symbol indicators, for enhanced visibility. It has an IP67 moisture protection rating and operates with a contact resistance of 50mΩ max at 1A 12VDC. Its SPST contact arrangement and actuator options make it ideal for control panels subjected to vandalism and harsh environments.
E-SWITCH SV7F23SS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body Diameter: 22mm
- Design includes multiple LED illumination options and stainless steel finish
- Includes soldered wire leads, 500mm long, with optional illumination voltage (6V, 12V, 24V).
Buy the Buy Industrial Switches Part Number SV7F23SS311 Online
Purchase the durable SV7 Series anti-vandal switch online today to ensure your control panels are equipped with a rugged, reliable device. Featuring a 22mm diameter, IP67 water resistance, and multiple LED illumination options, this switch offers long-lasting performance for harsh environments. Its compact design, SPST contacts, and stainless steel finish make it ideal for vandal-prone areas. Easy to install, with soldered wire leads, it provides secure and reliable operation. Order now and improve your equipment’s durability and visibility easily online.
Order your Industrial Series SV7F23SS311 anti-vandal switch today and enhance your control panel with a reliable, IP67 rated switch with multiple illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH SV7F23SS311?
You can click on the BUY or RFQ button to purchase SV7F23SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV7F23SS311?
You can download the SV7F23SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV7F23SS311?
E-SWITCH
