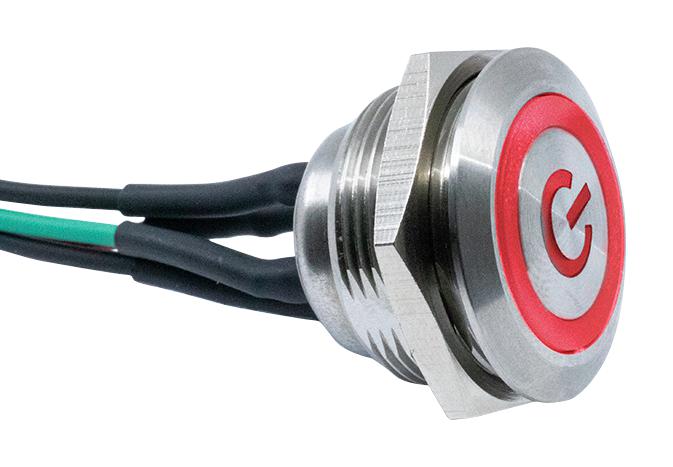

E-SWITCH SV7FW3SS3H1 Anti-Vandal Switch
The SV7 Series Anti-Vandal Switch is a durable, IP67-rated switch designed for rugged applications. It features a compact 22mm diameter body, a short body design, and multiple LED illumination options including ring and ring & power symbol types. With a 2A, 36VDC electrical rating, it offers a contact resistance of 50mΩ at 1A 12VDC, and a dielectric strength of 2000V RMS. Mountable on panels 1-6mm thick, it supports momentary or maintained actuation with stainless steel or steel actuators, ensuring reliable performance in demanding environments.
E-SWITCH SV7FW3SS3H1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max at 1A 12VDC
- Dielectric Strength: 2,000V RMS
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body Diameter: 22mm
- Actuator Options: Stainless Steel or Steel
- Illumination: LED ring or ring & power symbols
- Wire Leads: 500mm long, 20AWG, UL3385
Buy the Buy Durable Anti-Vandal Switch Part Number SV7FW3SS3H1 Online
Purchase the SV7 Series Anti-Vandal Switch online today to ensure reliable, long-lasting performance in demanding environments. This durable 22mm switch features IP67 rated moisture protection, a 2A/36VDC electrical rating, high cycle life, and multiple LED illumination options for enhanced visibility. Its compact design integrates seamlessly into industrial controls with panel thickness support from 1-6mm. Ideal for rugged applications requiring durability, stainless steel or steel actuators, and consistent operation in tough conditions. Order now for quick delivery and superior quality.
Get the SV7 Series Anti-Vandal Switch today—built for rugged environments with IP67 moisture protection and reliable LED illumination.
Frequently Asked Questions
Where can I buy E-SWITCH SV7FW3SS3H1?
You can click on the BUY or RFQ button to purchase SV7FW3SS3H1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV7FW3SS3H1?
You can download the SV7FW3SS3H1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV7FW3SS3H1?
E-SWITCH
