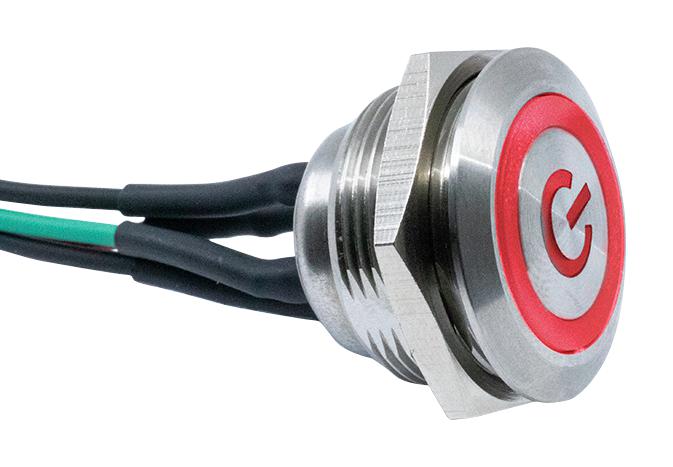

E-SWITCH SV7FW3SS631 Anti-Vandal Switch
The SV7 Series anti-vandal switch features a compact 22mm diameter body with a short design, IP67 moisture protection, and multiple LED illumination options such as ring or ring & power symbol. It supports a SPST contact configuration with a 2A, 36VDC electrical rating, and a contact resistance of 50mΩ max. The switch has a travel of 1.80mm, operating temperature range from -20°C to 70°C, and a panel thickness capacity of 1-6mm. It offers soldered wire leads (500mm), stainless steel finish, and includes various actuator options for versatile industrial applications.
E-SWITCH SV7FW3SS631 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body Diameter: 22mm
- Finish Style: Stainless Steel
- LED Voltage Options: 6V, 12V, 24V
- LED Illumination: Ring or ring & power symbol
- Body: Short design, compact for panel mounting
- Wire Leads: 500mm long, 20AWG UL3385 black or green
- IP67 rated for moisture protection
- Actuator options include ring illuminated and moveable actuator
- Installation panel cutout: 22mm
- Temperature Range: -20°C to 70°C
- Soldered wiring suitable for industrial control panels
Buy the Brand Series SV7 Anti-Vandal Switch: SV7FW3SS631
Secure your industrial panels with the durable SV7 Series anti-vandal switch. Featuring stainless steel construction, IP67 protection, and versatile LED illumination, it ensures long-lasting performance in harsh environments. With a compact 22mm diameter, IP67 moisture resistance, and multiple actuator options, this switch is ideal for control systems, machinery, and secure access points. Easy to install with soldered wire leads, it supports a load of 2A at 36VDC, providing reliable operation up to 200,000 cycles. Elevate your equipment’s reliability by purchasing online today!
Buy Brand SV7 Series SV7FW3SS631 anti-vandal switch now and experience unmatched durability, reliable illumination, and seamless installation in rugged environments.
Frequently Asked Questions
Where can I buy E-SWITCH SV7FW3SS631?
You can click on the BUY or RFQ button to purchase SV7FW3SS631 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV7FW3SS631?
You can download the SV7FW3SS631 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV7FW3SS631?
E-SWITCH
