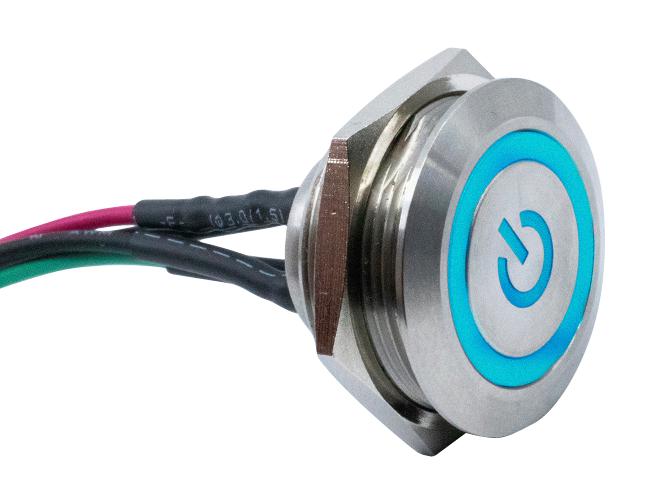

E-SWITCH SV8F23SS6H1 Anti-Vandal Switch
The SV8 Series Anti-Vandal Switch features a short body design with a 25mm diameter panel cutout and multiple LED options, including ring and ring & power symbol illumination. Rated at 2A and 36VDC, it offers 200,000 cycles lifespan, waterproof IP67 protection, and SPST contact configuration. The switch's robust construction includes stainless steel or steel actuators, soldered wire leads, and an actuation force of 4.5 N. It's ideal for industrial control panels requiring reliable, vandal-resistant switch solutions with illumination options for enhanced visibility and safety.
E-SWITCH SV8F23SS6H1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
- Body Material: Stainless Steel or Steel
- Actuator Options: Flat, Ring, and Ring & Power symbols
- LED Voltage Options: 6V, 12V, 24V, 6V 1800, 12V 4700, 24V 10000
- Dimensions: Diameter 25mm, panel cutout 25mm, overall length approx. 19.70mm, width approx. 28.00mm
- Terminal Type: Soldered wires (500mm long), 20AWG UL3385
- Locking options: Keylock, pushbutton, rocker, rotary, switch types
- Environmental: Suitable for outdoor or vandal-prone environments
Buy the Industrial Series Anti-Vandal Switch: SV8F23SS6H1
Order the Anti-Vandal Switch today for your industrial control needs. Featuring IP67 protection, LED illumination options, and a robust stainless steel body, this switch provides lasting performance and reliability. With a compact 25mm diameter panel cutout and multiple actuation options, it ensures easy installation and excellent visibility. Perfect for outdoor or vandal-prone environments, it supports high current ratings and long operational life. Secure your control systems now by purchasing this dependable, vandal-resistant switch online.
Get SV8 Series Anti-Vandal Switch today—built for durability and reliable control in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH SV8F23SS6H1?
You can click on the BUY or RFQ button to purchase SV8F23SS6H1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV8F23SS6H1?
You can download the SV8F23SS6H1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV8F23SS6H1?
E-SWITCH
