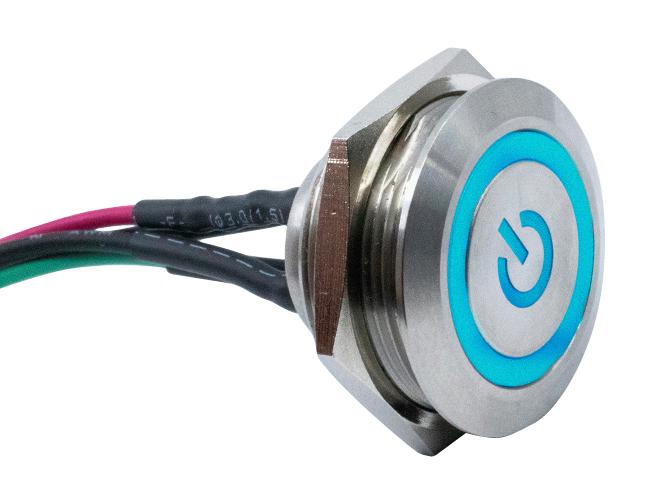

E-SWITCH SV8FW3SS3G1 Anti-Vandal Switch
The SV8 Series Anti-Vandal Switch is a compact, durable switch designed for harsh environments with IP67 moisture protection. Featuring a 25mm diameter panel cutout, it offers multiple LED illumination options, including ring and symbol indicators. The switch includes a short body design, soldered wire leads, and an actuator with various finish and illumination options. It supports a 2A, 36VDC electrical rating, withstands 200,000 cycles, and operates within -20°C to 70°C. Ideal for industrial, control, or security applications requiring reliable and vandal-resistant switches.
E-SWITCH SV8FW3SS3G1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
Buy the SV8 Series Anti-Vandal Switch: SV8FW3SS3G1
Order the SV8 Series Anti-Vandal Switch online today for reliable performance in harsh environments. Featuring IP67 protection, multiple LED illumination options, and a compact design, it ensures durability and easy installation. Perfect for industrial automation, security systems, and control panels, this switch supports 2A at 36VDC and endures up to 200,000 cycles. Its short body and various actuator finishes make it versatile for many applications. Make your purchase now and enhance your electrical control setup with a dependable vandal-resistant switch.
Get SV8 Series Anti-Vandal Switch today—built for industrial reliability, vandal resistance, and long-lasting durability.
Frequently Asked Questions
Where can I buy E-SWITCH SV8FW3SS3G1?
You can click on the BUY or RFQ button to purchase SV8FW3SS3G1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV8FW3SS3G1?
You can download the SV8FW3SS3G1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV8FW3SS3G1?
E-SWITCH
