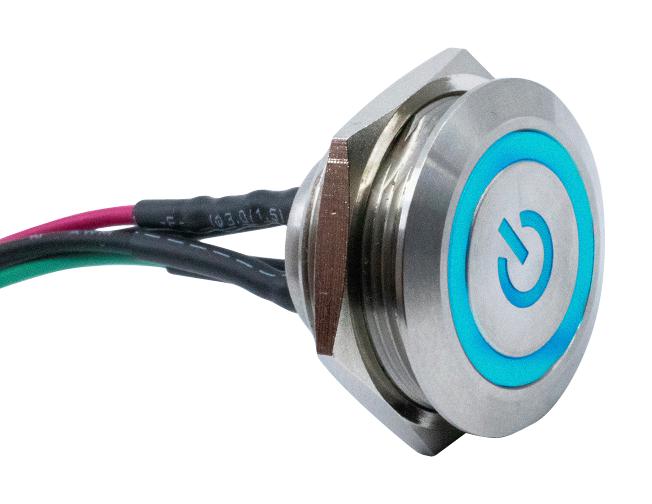

E-SWITCH SV8FW3SS601 Anti-vandal switch
The SV8 series anti-vandal switch features a short body design with a 25mm diameter panel cutout, IP67 rated moisture protection, and multiple LED illumination options including ring and power symbols. It offers a SPST contact arrangement, a 2A, 36VDC electrical rating, and an operating temperature of -20°C to 70°C. The switch is mounted with a nut torque of 1-3Nm, with soldered wire leads (500mm long) and a travel of 1.80mm, making it suitable for rugged industrial environments requiring reliable switch performance.
E-SWITCH SV8FW3SS601 Anti-vandal switch Specifications:
- Electrical Rating: 2A, 36VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 1.80mm
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 4.5 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 1-3Nm
Buy the BrandName SV8 Series – Reliable Switches for Industrial Applications
Discover the durability and reliability of the SV8 series anti-vandal switch. Engineered for industrial use, it features IP67 protection, various LED illumination options, and a 2A DC rating. Its compact size with a 25mm panel cutout and short body design makes installation straightforward in rugged environments. The switch offers a 1.80mm travel, SPST contact configuration, and soldered wire leads, ensuring long-lasting performance across demanding conditions. Perfect for applications requiring visibility, durability, and dependable operation.
Order your BrandName SV8 Series anti-vandal switch today and enhance your industrial equipment with durable, IP67 rated reliability.
Frequently Asked Questions
Where can I buy E-SWITCH SV8FW3SS601?
You can click on the BUY or RFQ button to purchase SV8FW3SS601 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SV8FW3SS601?
You can download the SV8FW3SS601 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SV8FW3SS601?
E-SWITCH
