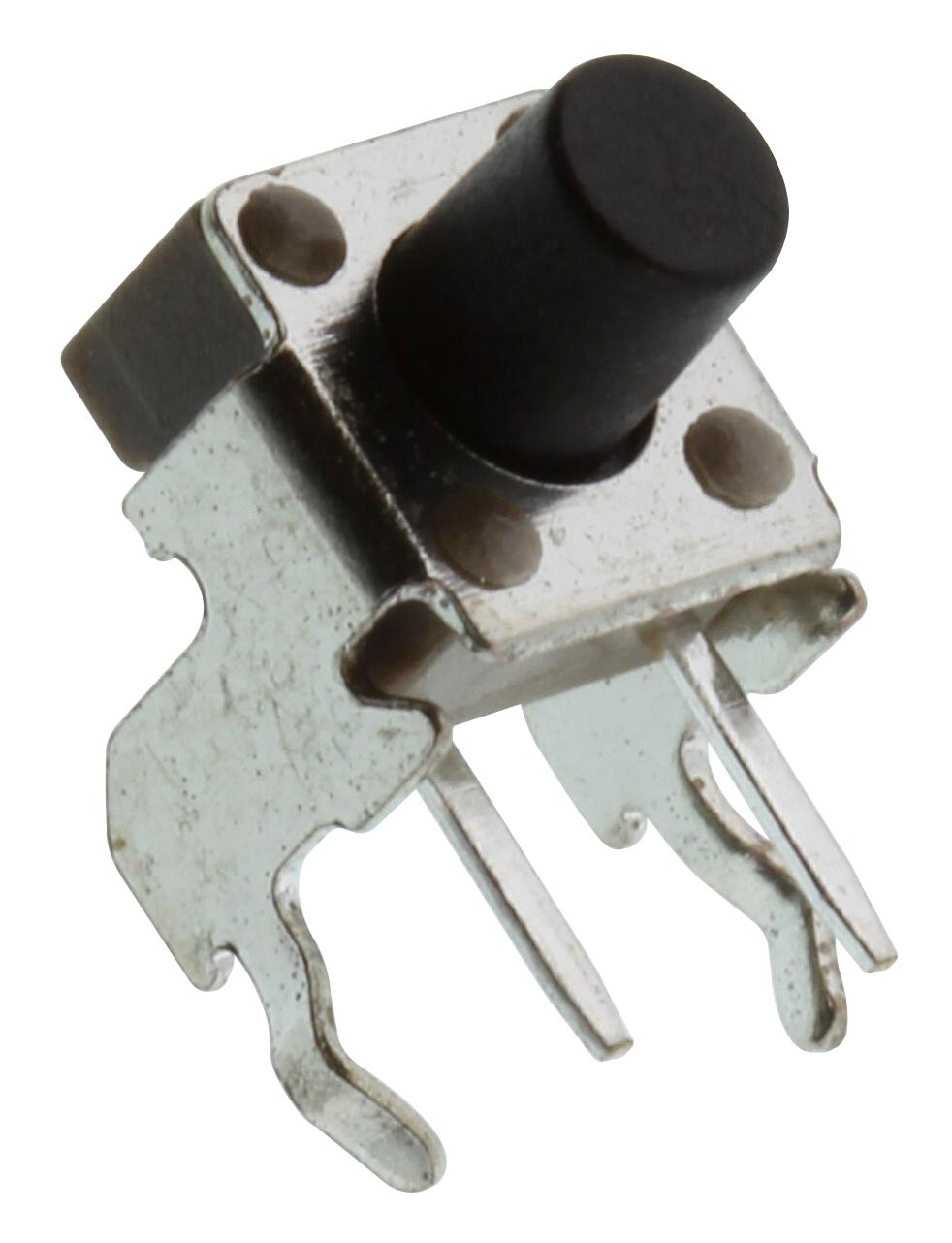

E-SWITCH TL1105RF160Q94VO Tact Switch
The TL1105 series tact switches are reliable 6mm x 6mm electronic switches designed for use in telecommunication, consumer electronics, medical, and testing applications. They feature gold or silver plated contacts with a contact resistance of 100mΩ and operate within a temperature range of -20°C to 70°C. The switches offer multiple actuation forces, manual actuation travel of 0.25mm, and insulate with nylon or PBT housings. Their robust design ensures durability with a life expectancy of 100,000 cycles, making them ideal for various precise electronic and industrial uses.
E-SWITCH TL1105RF160Q94VO Tact Switch Specifications:
- Contact Resistance: 100mΩ typical @ 50mA, 12VDC
- Life Expectancy: 100,000 cycles
- Operating Voltage: 50mA @ 12 VDC (gold), 100mA for silver and gold contacts
- Insulation Resistance: 100MQ min.
- Dielectric Strength: 250 VAC
- Actuation Force: 100 + 50 gf, 160 + 50 gf, 250 + 50 gf
- Operating Temperature: -20°C to 70°C
- Travel: 0.25mm typical
- Housing Material: Nylon or PBT
- Actuator Material: Nylon, Acetal, or PBT
- Cover Material: Polyester
- Contacts: Gold or silver plated
- Terminals: Silver plated brass
- Dimensions: 6mm x 6mm footprint, actuator length varies with model
- Mounting Type: PC, right angle or straight
- Certifications: UL, RoHS compliant
Buy the Buy Reliable Electronic Switch Part Number TL1105RF160Q94VO Online
Order the TL1105RF160Q94VO tact switch online today and ensure your electronics are equipped with durable, reliable switches that guarantee consistent performance. Perfect for telecommunications, consumer electronics, medical devices, and testing equipment. With a lifetime of 100,000 cycles, excellent insulation, and multiple actuation force options, this switch provides precise tactile feedback and long-term durability. Easy to install and RoHS compliant, making it ideal for your professional and hobbyist electronic applications. Purchase now for quality and peace of mind.
Buy TL1105RF160Q94VO tact switch now and experience long-lasting reliability and precise tactile feedback for your electronic projects.
Frequently Asked Questions
Where can I buy E-SWITCH TL1105RF160Q94VO?
You can click on the BUY or RFQ button to purchase TL1105RF160Q94VO from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL1105RF160Q94VO?
You can download the TL1105RF160Q94VO datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL1105RF160Q94VO?
E-SWITCH
