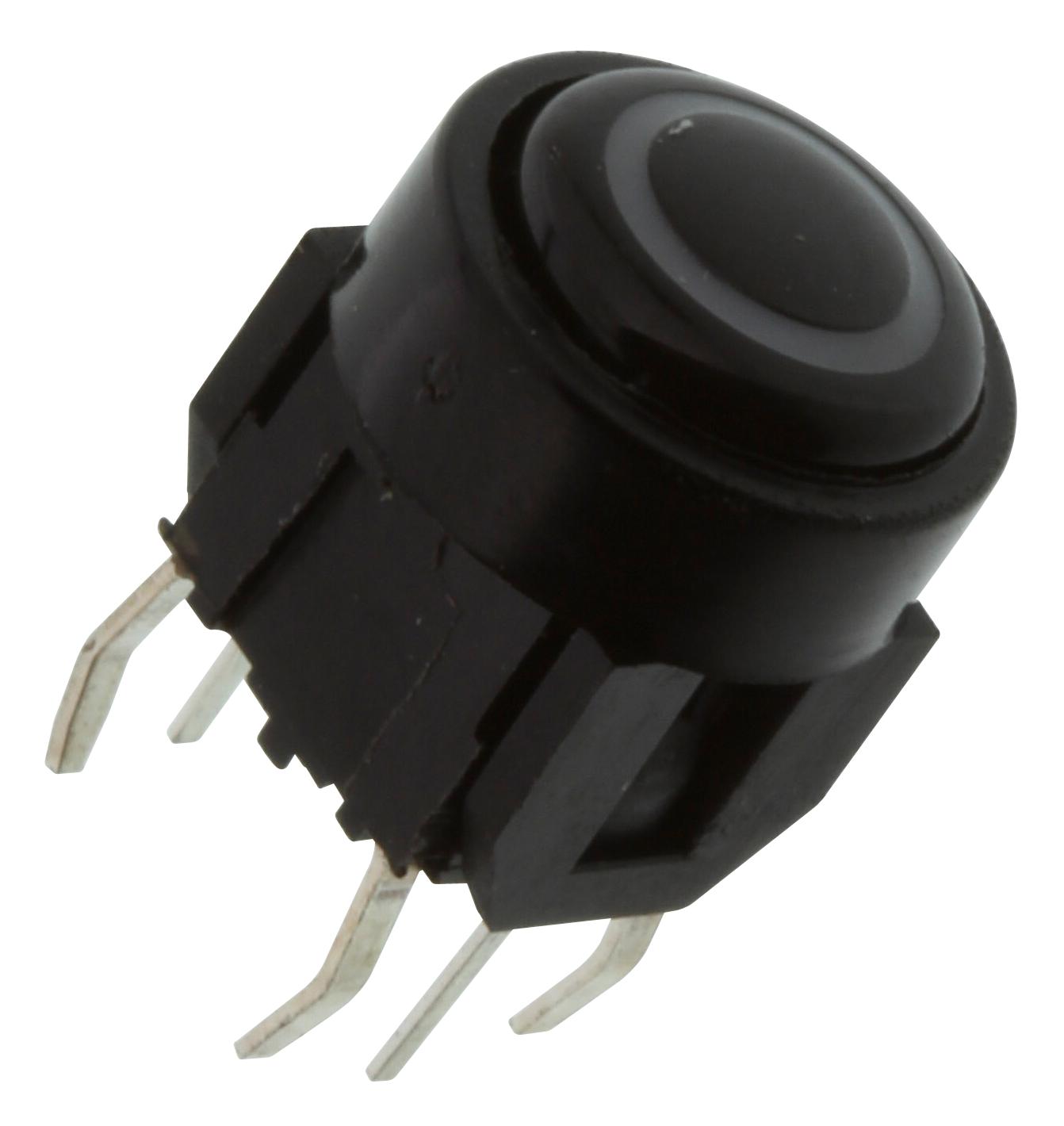

E-SWITCH TL1220R1BBBBHALO Tactile Switch
The TL1220 Series tactile switches are compact, durable, and suitable for anti-vandal, detector, DIP, keylock, navigation, pushbutton, rocker, rotary, slide, toggle, and snap action switch applications. They feature a contact resistance of 100mQ at 1.5 VDC max., a life expectancy of 500,000 cycles, and an operating temperature range from -40°C to 85°C. These switches offer various illumination options with multiple cap colors, sizes, and configurations, making them versatile for industrial and electronic device use.
E-SWITCH TL1220R1BBBBHALO Tactile Switch Specifications:
- Electrical Rating: 50mA @ 12VDC + Multiple illuminated cap options
- Life Expectancy: 500,000 cycles
- Contact Resistance: 100mQ @ 1.5 VDC Max.
- Insulation Resistance: 100 MQ Min. at 500VAC
- Dielectric Strength: 500VAC for 1 min.
- Operating Temperature: -40°C to 85°C
- Operating Force: 180 gf + 50 gf
- Travel: 0.20mm + 0.4mm
- Contact Arrangement: SPST
- Dimensions vary with options, sizes include 7mm, 8mm, 9.6mm, 10mm, and 13mm diameters
- LED options: single color and bi-color, various cap colors
Buy the Innovative Series TL1220 Tactile Switch: TL1220R1BBBBHALO
Discover the high-quality TL1220 Series tactile switches designed for demanding industrial and electronic applications. Featuring multiple size and illumination options, these switches provide sharp tactile response, long-lasting durability with 500,000 cycles, and excellent electrical performance. Perfect for anti-vandal, detector, DIP, keylock, navigation, pushbutton, rocker, rotary, and slide switch needs. Easy to integrate into various control panels and devices, order your TL1220 series switch online now and ensure your projects benefit from dependable, versatile switching technology.
Order your ITW Series TL1220 tactile switch today and enhance your electronic projects with reliable, durable switching solutions.
Frequently Asked Questions
Where can I buy E-SWITCH TL1220R1BBBBHALO?
You can click on the BUY or RFQ button to purchase TL1220R1BBBBHALO from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL1220R1BBBBHALO?
You can download the TL1220R1BBBBHALO datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL1220R1BBBBHALO?
E-SWITCH
