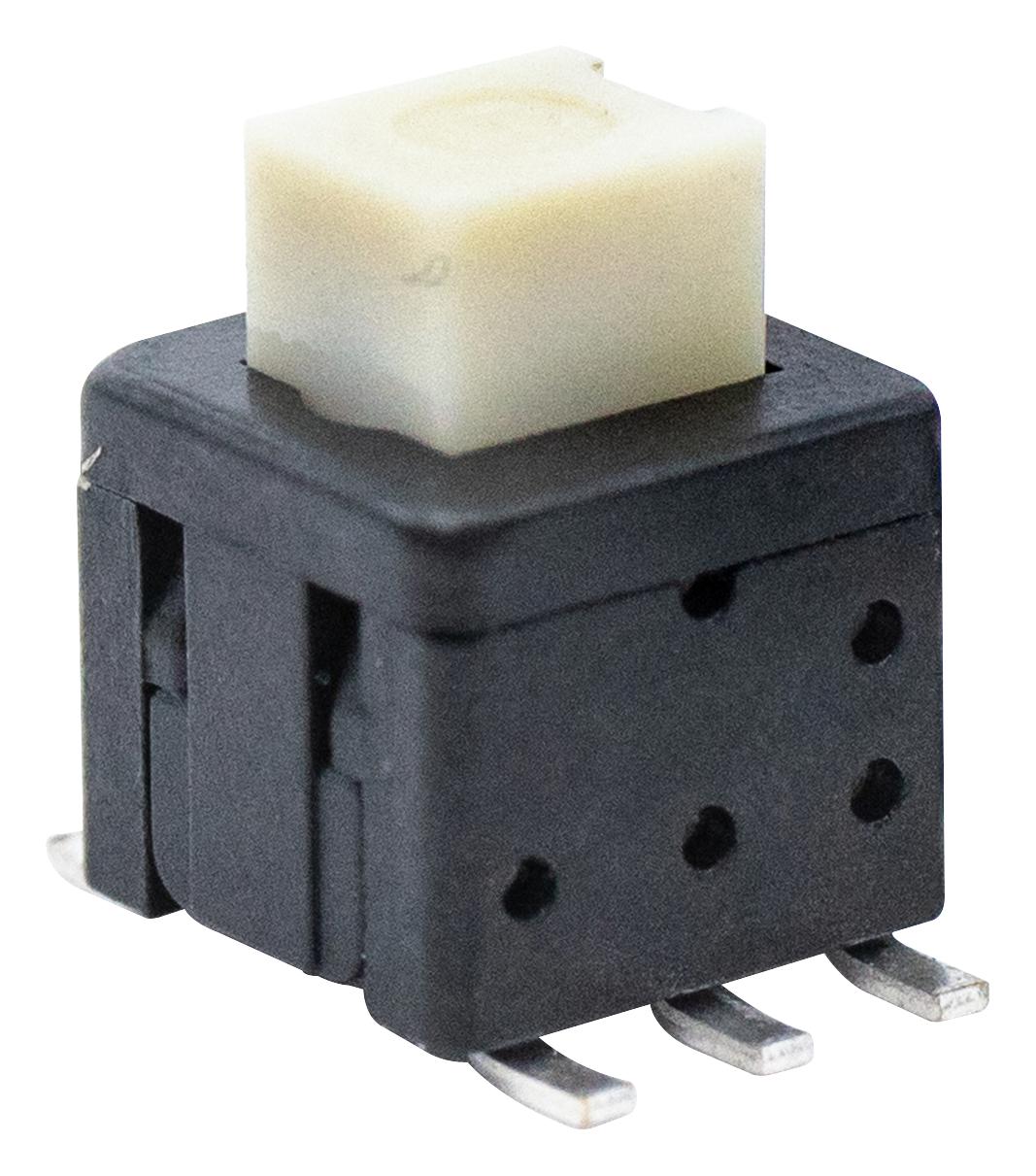

E-SWITCH TL2233OA Pushbutton Switch
The TL2233 Series Pushbutton Switch is a surface mount, DPDT switch designed for industrial applications. It features a long electrical life of 10,000 cycles, an electrical rating of 100mA at 30VDC, and a momentary snap action with a travel of 1.90mm. The switch offers a contact resistance of 100mΩ max, insulation resistance of 100MΩ min, dielectric strength of 250VAC for 1 minute, and an actuation force of 250 gf ± 80 gf. Operating temperature ranges from -10°C to 60°C, making it suitable for rugged environments.
E-SWITCH TL2233OA Pushbutton Switch Specifications:
- Electrical Rating: 100mA @ 30VDC
- Contact Arrangement: DPDT
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. @ 100VDC
- Dielectric Strength: 250VAC for 1 Minute
- Travel: 1.90mm
- Actuation Force: 250 gf ± 80 gf
- Operating Temperature: -10°C to 60°C
- Surface Mount Design
- Wave Solderable
- Dimensions include max height 9.00 mm, width 4.00 mm, depth 6.50 mm, with actuator color options in white and housing color in black.
- Recommended Soldering Profile: Preheat 150-200°C, Max Peak Temperature 217°C, Ramp rates 3-6 °C/sec, total soldering time 6-8 minutes.
Buy the Ze Electrical TL2233U – Reliable Pushbutton Switch for Industrial Applications
Purchase the Ze Electrical TL2233 Pushbutton Switch online today and enhance your control panel with a reliable, durable, and high-performance switch. Its surface mount design and long electrical life make it ideal for industrial automation, machinery, and control systems. Easy to solder and operate, this switch is engineered for harsh environments with a temperature rating from -10°C to 60°C. Get yours now and ensure your equipment's reliability with this high-quality, wave solderable switch.
Buy Ze Electrical TL2233 switch now and enjoy high durability, long lifespan, and dependable performance in your industrial control systems.
