E-SWITCH TL3145AF180QJ Industrial Tact Switch
The TL3145 series tact switch is a reliable, durable switch designed for industrial and commercial applications requiring up to 3,000,000 cycles. This SPST Off-On switch features a 180 gf operating force, IP67 dust and moisture resistance, and a compact design suitable for PCB mounting. It has a contact resistance of 100mΩ, dielectric strength of 250VAC, and operates effectively from -40°C to 85°C. Its sturdy construction makes it ideal for demanding environments needing dependable switching performance and long service life.
E-SWITCH TL3145AF180QJ Industrial Tact Switch Specifications:
- Electrical Rating: 50mA, 12VDC
- Electrical Life: up to 3,000,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min at 500VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 180gf + 50gf (3,000,000 cycles)
- IP67 Dust/Moisture Protection
- Travel: 0.15mm
- Function: SPST, Off-On
- Actuator Force Options: 260gf + 50gf, 350gf + 80gf
- Dimensions: Length 3.60mm, Width 3.00mm, Height 5.00mm

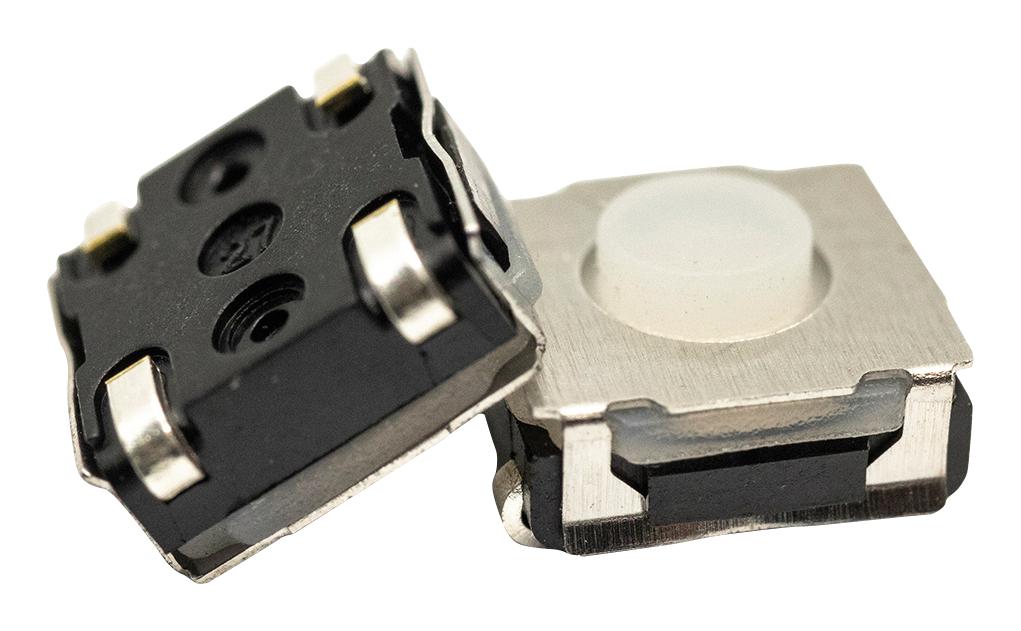

Buy the Buy Industrial Switches Series TL3145 Part Number TL3145AF180QJ Online
Enhance your industrial or commercial electronics with the TL3145 series tact switch, offering up to 3 million cycles, IP67 dust and moisture resistance, and a compact size. The switch features a 180 gf operating force, making it ideal for rugged environments while ensuring long-lasting, reliable performance. Its high dielectric strength and contact resistance specifications guarantee safety and efficiency. Purchase this durable pushbutton switch online today for seamless integration into your control systems, ensuring dependable operation under demanding conditions.
Get TL3145 Series Tact Switch today—built for precision, high cycle life, and IP67 protection in demanding applications.
Frequently Asked Questions
Where can I buy E-SWITCH TL3145AF180QJ?
You can click on the BUY or RFQ button to purchase TL3145AF180QJ from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3145AF180QJ?
You can download the TL3145AF180QJ datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3145AF180QJ?
E-SWITCH
