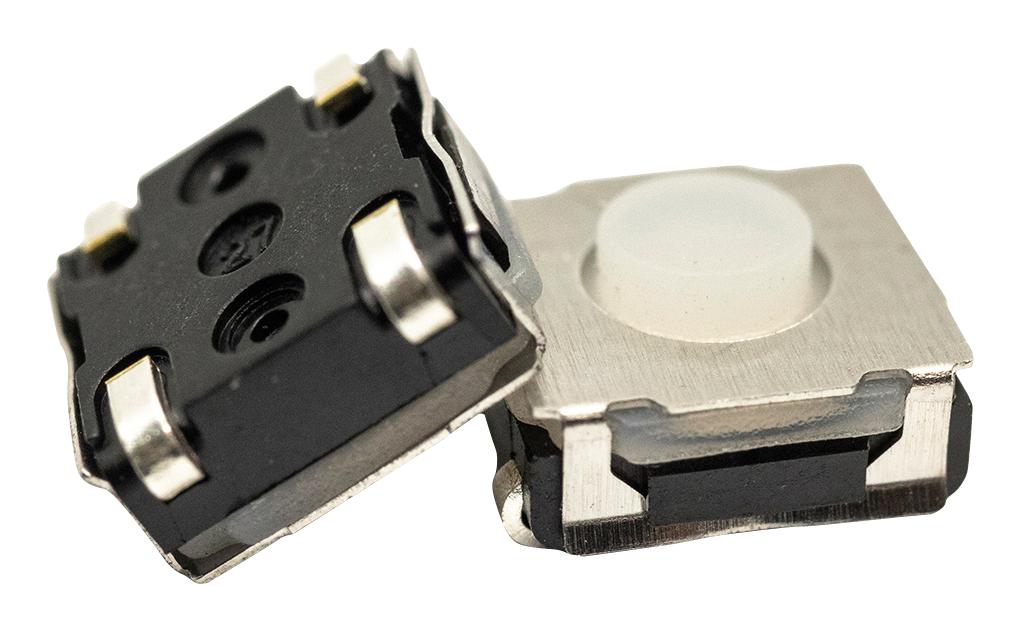

E-SWITCH TL3145BF180QJ Tactile Switch
The TL3145 series tactile switch is a durable, high-reliability switch designed for various applications requiring up to 3,000,000 cycle life. It features an IP67 dust and moisture-proof rating, with an operating temperature range from -40°C to 85°C. The switch offers multiple actuator force options, including 180gf, 260gf, and 350gf, with overall dimensions suitable for PCB mounting. Its SPST On-Off function, low contact resistance, and excellent dielectric strength make it ideal for industrial and electronic control systems requiring robust performance and long life.
E-SWITCH TL3145BF180QJ Tactile Switch Specifications:
- Electrical Rating: 50mA, 12VDC
- Electrical Life: up to 3,000,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min at 500VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 180gf + 50gf or 260gf + 50gf or 350gf + 80gf
- Travel: 0.15mm
- Sealing: IP67 rated dust/moisture resistance
- Function: SPST, Off-On
Buy the Sealed Switch Series Tactile: TL3145BF180QJ
Discover the reliable TL3145BF180QJ tactile switch, featuring a long cycle life of up to 3 million operations, IP67 sealing for dust and moisture resistance, and various actuator force options. Perfect for industrial control panels, electronic devices, and automation systems, this switch offers excellent electrical stability, low contact resistance, and a compact design for ease of integration. Purchase online now to ensure your project benefits from this high-performance, durable switch with proven reliability and long operational life.
Buy TL3145BF180QJ tactile switch now and experience unmatched durability, high cycle life, and IP67 dust/moisture protection for your demanding applications.
