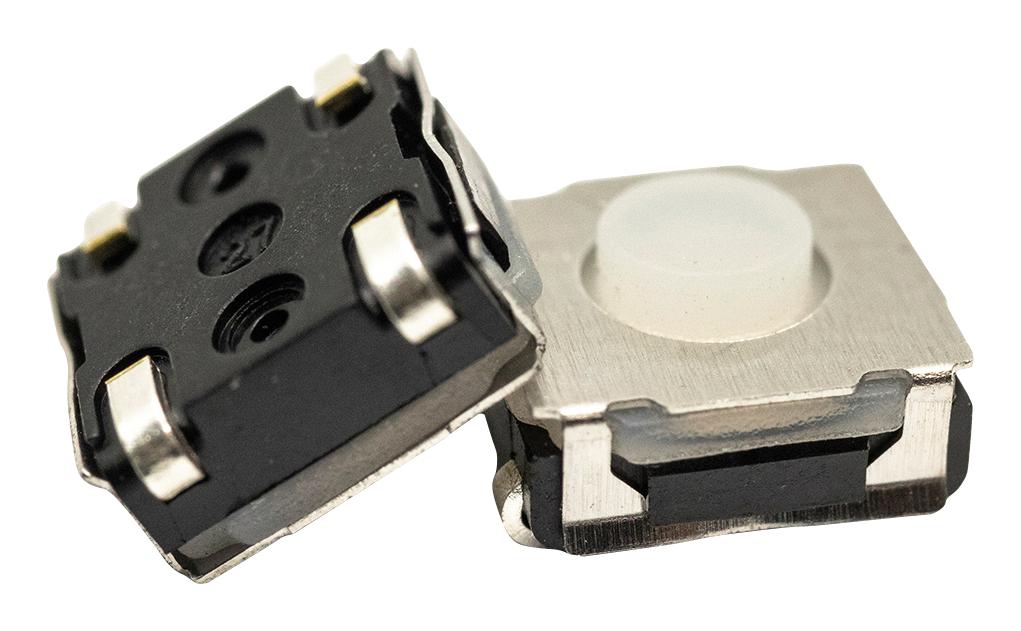

E-SWITCH TL3145BF260QJ Industrial Tactile Switch
The TL3145 series tactile switch is an IP67-rated, vandal-resistant switch designed for reliable operation in industrial environments. It features a SPST, off-on function with a contact resistance of 100mΩ max and an insulation resistance of 100MQ minimum at 500VDC. The switch offers a life expectancy of up to 3 million cycles, operating in temperatures from -40°C to 85°C. It is available in multiple actuator forces including 180gf, 260gf, and 350gf, with various cap color options like white and blue, making it suitable for demanding industrial control applications.
E-SWITCH TL3145BF260QJ Industrial Tactile Switch Specifications:
- Electrical Rating: 50mA, 12VDC
- Electrical Life: up to 3,000,000 cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MQ Min at 500VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 180gf, 260gf, 350gf (±50gf, ±80gf)
- Travel: 0.15mm
- IP67 Dust/Moisture Protection
- Function: SPST, Off-On
- Material: Metal actuator, plastic housing
- Cap Color Options: White, Blue
- Recommended PCB layout: 3.00mm to 6.45mm pin spacing
- Dimensions: Length approximately 3.60mm to 6.45mm, Width approximately 3.00mm to 6.45mm, Actuator length approximately 2.65mm to 5.60mm
Buy the Hingepower TL3145 – Reliable Tactile Switch for Industrial Applications
Purchase the Hingepower TL3145 series tactile switch online now to guarantee reliable, dust and moisture resistant switching in demanding industrial settings. With up to 3 million cycles and multiple actuator force options, this IP67-rated switch is perfect for control panels, machinery, and automation projects. Its compact design and high performance ensure durability and seamless operation even in harsh environments. Elevate your industrial controls today by ordering this durable, IP67 tactile switch online for quick delivery and technical support.
Order your Hingepower Series TL3145 tactile switch today and ensure dependable performance in rugged industrial environments with long cycle life and IP67 protection.
Frequently Asked Questions
Where can I buy E-SWITCH TL3145BF260QJ?
You can click on the BUY or RFQ button to purchase TL3145BF260QJ from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3145BF260QJ?
You can download the TL3145BF260QJ datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3145BF260QJ?
E-SWITCH
