E-SWITCH TL3240R1CAPBLU Tactile Switch
The TL3240 Series tactile switch features a surface-mount design with SPST, Normally Open contact configuration, ideal for vandal-resistant, LED-indicated applications. With a 50mA @ 12VDC electrical rating and illumination options, these switches support a wide operating temperature range of -25°C to 70°C, and feature a travel of 0.2mm. The series offers various force options (100gf, 160gf, 260gf) and colored caps for versatile usage. Robust construction ensures 200,000 cycles of life expectancy, making them suitable for demanding industrial and instrumentation environments.
E-SWITCH TL3240R1CAPBLU Tactile Switch Specifications:
- Electrical Rating: 50mA @ 12VDC with illumination options
- Life Expectancy: 200,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100 MΩ Min at 500VDC
- Dielectric Strength: 250VAC for 1 min
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 100 gf, 160 gf, 260 gf
- Travel: 0.2mm
- Contact Arrangement: SPST, Normally Open
- Surface Mount Design
- Cap Options: Red, Blue, Green, Ivory, Yellow (sold separately)
- Physical Dimensions: Length approximately 4.04 mm, width 2.90 mm, height 3.50 mm
- LED Forward Voltage: 3.2 V (typ), 3.6 V (max), current 20mA
- LED Color: Blue, Red, Green, Yellow, Ivory
- Packaging: Tape & Reel, 450 pieces per reel

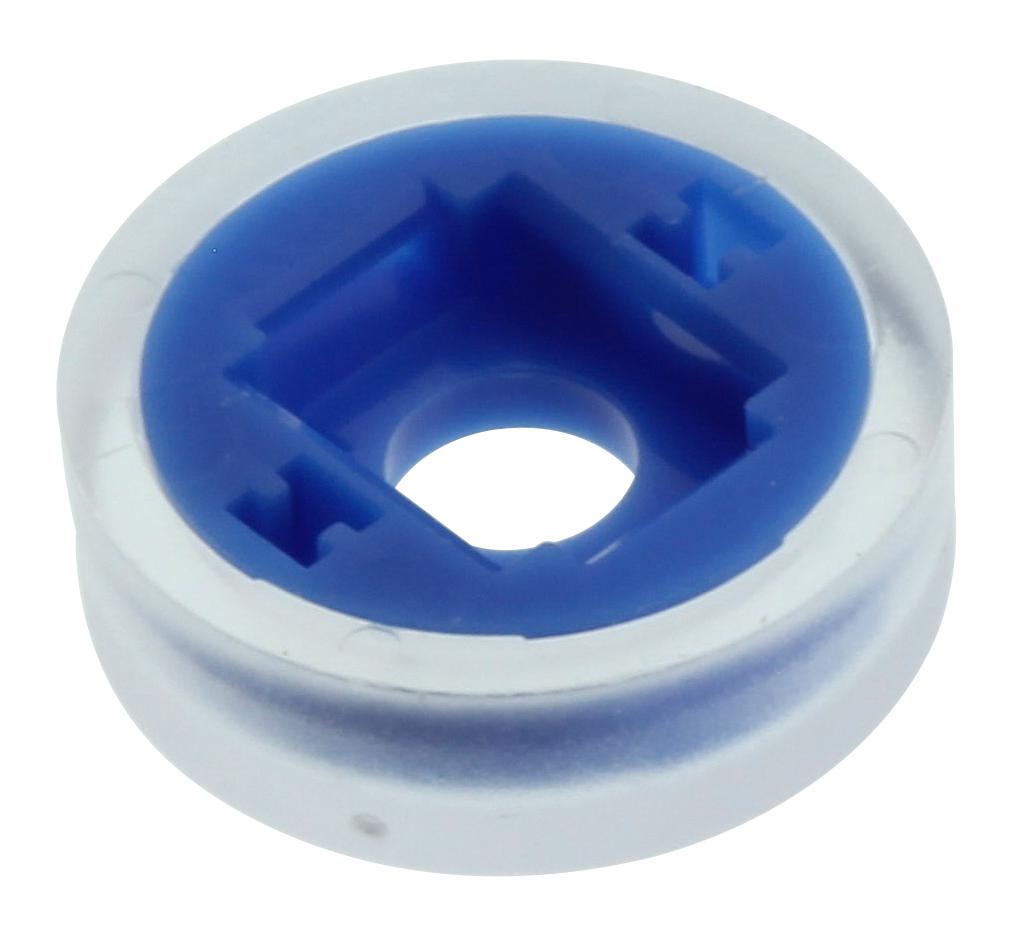

Buy the Buy IndustryA LLC TL3240 Series Part Number TL3240R1CAPBLU Online
Purchase the IndustryA LLC TL3240 Series tactile switch online today to ensure your industrial and instrumentation projects have durable, high-quality switches with LED options. Featuring a surface-mount design, multiple force and color choices, and a robust life expectancy of 200,000 cycles, this switch is ideal for demanding applications. Easy ordering, fast delivery, and trusted quality make it the perfect solution for engineers and technicians seeking reliable tactile switches for various electronic devices and control systems.
Order your IndustryA LLC TL3240 Series TL3240R1CAPBLU today and equip your projects with reliable, high-performance tact switches with LED indication.
