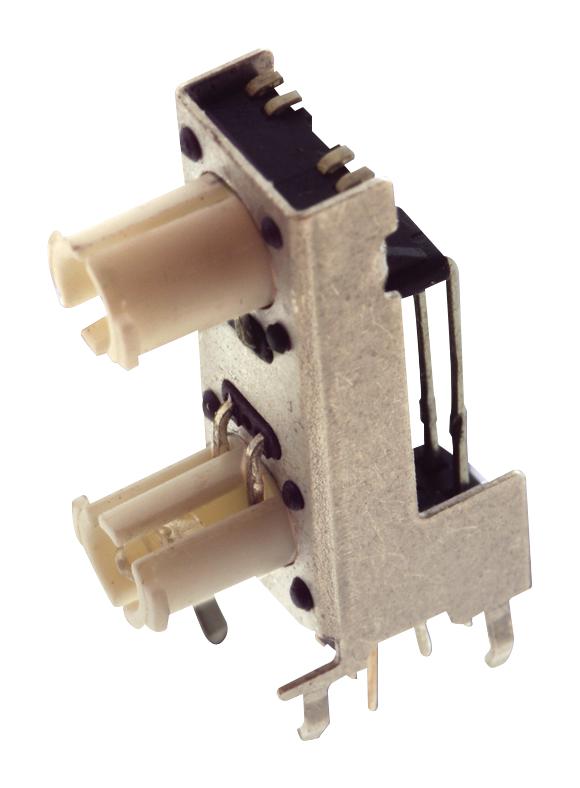

E-SWITCH TL3253BRNBGNF160Q Tactile Switch
The TL3253 series tactile switch offers high reliability with a life expectancy of 500,000 cycles and operates at 50mA @ 12V DC. It features dual stacked LEDs with various color options, right-angle mounting, and an operating temperature range of -20°C to 70°C. The switch has an operating force of 160 grams-force and a travel of 0.25mm. Available with different actuator heights, LED colors, and caps, it is suitable for industrial control panels, user interfaces, and embedded systems requiring durable, illuminated switch solutions.
E-SWITCH TL3253BRNBGNF160Q Tactile Switch Specifications:
- Rating: 50mA @ 12V DC
- Life Expectancy: 500,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100 MΩ Min at 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 160 gf
- Travel: 0.25mm
- Contact Arrangement: SPST, Normally Open
- Actuator Heights: 6.60mm, 8.55mm
- LED Colors: Yellow, Red, Green, Blue, White
- Cap Options: Transparent, No Cap
- Mounting: Right angle
- Dimensions: approx. 8.40mm x 10.50mm x actuator height
- Certifications: Not specified
Buy the Omega Series Tact Switch: TL3253BRNBGNF160Q
Purchase the Omega TL3253BRNBGNF160Q tactile switch online today and enhance your electronic devices with a highly reliable, long-lasting switch. Designed for industrial control panels and embedded systems, this switch offers dual LEDs for clear indication, a 500,000 cycle lifespan, and multiple color options. Its compact size, right-angle mounting, and robust construction ensure consistent performance in demanding environments. Order now and benefit from fast delivery, excellent support, and the assurance of high-quality components for your project needs.
Buy Omega TL3253BRNBGNF160Q now and experience unmatched reliability and performance with durable, illuminated tactile switches for control panels.
Frequently Asked Questions
Where can I buy E-SWITCH TL3253BRNBGNF160Q?
You can click on the BUY or RFQ button to purchase TL3253BRNBGNF160Q from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3253BRNBGNF160Q?
You can download the TL3253BRNBGNF160Q datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3253BRNBGNF160Q?
E-SWITCH
