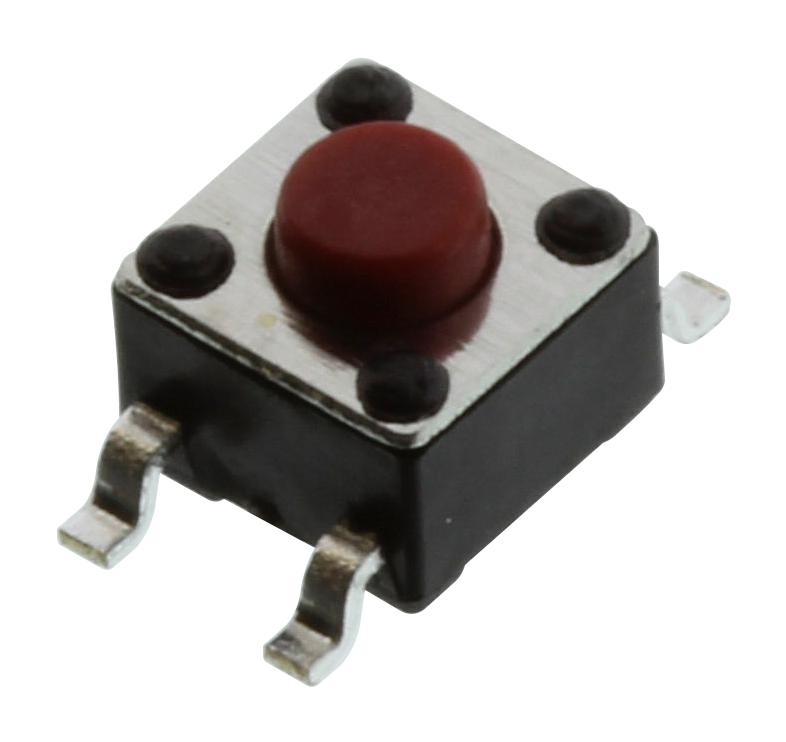

E-SWITCH TL3305AF260QG Tactile Switch
The TL3305 Series tactile switch offers a compact, ultra-miniature design measuring 4.5 x 4.5mm, ideal for instrumentation and medical equipment applications. It features a durable electrical rating of 50mA at 12VDC and an impressive lifespan of up to 500,000 cycles at 160 gf actuation force. Multiple actuator options and surface-mount design provide flexibility, while its operating temperature range is from -20°C to 70°C. The switch includes SPST, normally open contact configuration, and silver contact material for reliable performance in demanding environments.
E-SWITCH TL3305AF260QG Tactile Switch Specifications:
- Dimensions: 4.5 x 4.5mm, height 7.50mm
- Electrical Rating: 50mA @ 12VDC
- Electrical Life: 160 gf = 500,000 cycles, 260 gf = 200,000 cycles
- Contact Resistance: Max 100mΩ
- Insulation Resistance: Min 100MΩ at 100VDC
- Dielectric Strength: 250VAC for 1 minute
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 160 gf or 260 gf
- Travel: 0.20mm
- Contact Arrangement: SPST, Normally Open
- Actuator Options: 3.8mm, 5.0mm, 7.0mm
- Actuation Force Options: 160 gf, 260 gf
- Material: Silver contacts, gullwing terminal
Buy the Vandal Switch Series TL3305: TL3305AF260QG
Order the TL3305AF260QG tactile switch online today for reliable, high-performance switching in instrumentation and medical devices. Its compact size, long electrical life, and multiple actuator options make it perfect for demanding applications. With a durable construction rated for up to 500,000 cycles at 160 gf actuation force, this surface-mount switch offers excellent contact resistance and insulation properties. Purchase now and ensure your equipment operates flawlessly with this high-quality switch built for precision and durability.
Get TL3305AF260QG today—robust tactile switch designed for precision, longevity, and reliable performance in industrial and medical equipment.
Frequently Asked Questions
Where can I buy E-SWITCH TL3305AF260QG?
You can click on the BUY or RFQ button to purchase TL3305AF260QG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3305AF260QG?
You can download the TL3305AF260QG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3305AF260QG?
E-SWITCH
