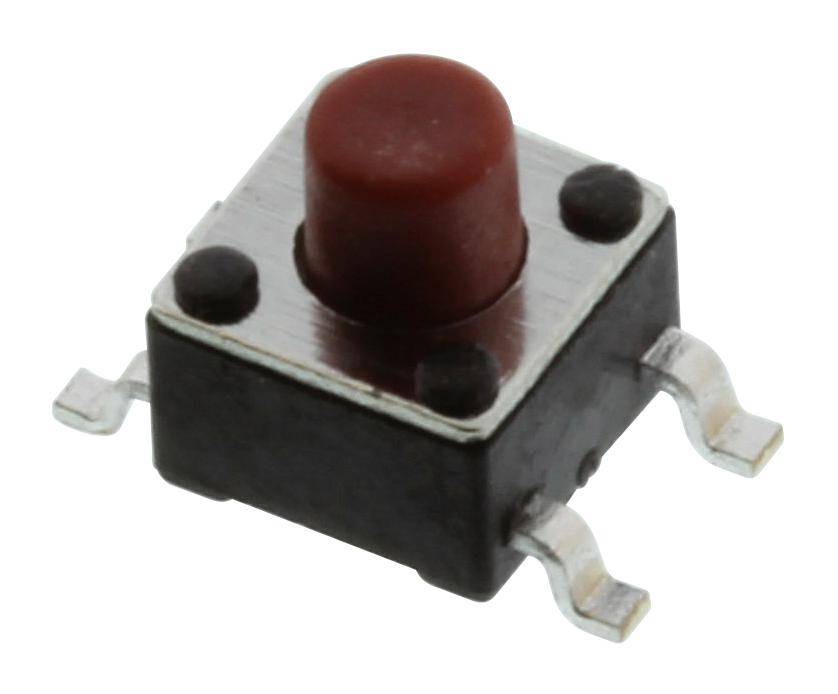

E-SWITCH TL3305BF260QG Tactile Switch
The TL3305 Series tactile switch features an ultra-miniature size of 4.5 x 4.5mm, with a surface-mount design suitable for compact electronic assemblies. It offers multiple actuator options and operating forces, including 160 gf and 260 gf, making it versatile for various applications. The switch boasts an electrical rating of 50mA at 12VDC, with a lifespan of up to 500,000 cycles at 160 gf. Its robust construction includes insulation resistance of 100MΩ minimum at 100VDC and dielectric strength of 250VAC for 1 minute, operating in temperatures from -20°C to 70°C, ideal for instrumentation and medical equipment.
E-SWITCH TL3305BF260QG Tactile Switch Specifications:
- Electrical Rating: 50mA @ 12VDC
- Electrical Life: 500,000 cycles at 160 gf, 200,000 cycles at 260 gf
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min. at 100VDC
- Dielectric Strength: 250VAC for 1 min
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 160 gf and 260 gf options
- Travel: 0.20mm
- Contact Arrangement: SPST, normally open
- Body Dimensions: 4.5 x 4.5mm, height 4.4mm
- Actuator Options: A-3.8mm, B-5.0mm, C-7.0mm
- Actuation Force Options: 160 gf, 260 gf
- Material: Silver contacts, gullwing terminal
- Surface Mount: Yes
- Temperature Range: -20°C to 70°C
Buy the Innovative Switches TL3305 – Reliable Tactile Switch for Industrial Applications
Purchase the TL3305 Series tactile switch online today and enjoy fast, secure shipping. Perfect for instrumentation, medical devices, and compact electronics, this ultra-miniature switch offers high durability, multiple actuator options, and long electrical life. Its surface-mount design simplifies assembly, while the robust electrical and temperature ratings ensure reliable performance in demanding environments. Elevate your electronic designs with this high-quality, precision switch—order now and get efficient, dependable operation for your industrial and medical applications.
Order your TL3305 Series tactile switch today and enhance your electronic projects with dependable, compact switching solutions designed for durability.
Frequently Asked Questions
Where can I buy E-SWITCH TL3305BF260QG?
You can click on the BUY or RFQ button to purchase TL3305BF260QG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3305BF260QG?
You can download the TL3305BF260QG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3305BF260QG?
E-SWITCH
