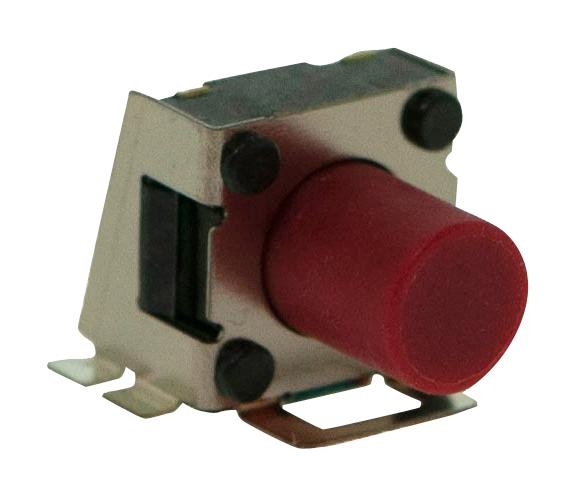

E-SWITCH TL3360CF260Q Tactile Switch
The TL3360 series tactile switches are durable, surface-mount SPST switches designed for industrial applications. Featuring multiple actuator options, operating forces of 185 gf or 260 gf, and a travel of 0.15mm, they offer reliable performance in demanding environments. These switches have an electrical rating of 50mA at 12VDC, an electrical life of 200,000 cycles, and excellent resistance qualities, including contact resistance of max 100mΩ, insulation resistance of min 100MΩ at 500VDC, and dielectric strength of 250VAC for 1 minute. Ideal for industrial control panels and automation systems.
E-SWITCH TL3360CF260Q Tactile Switch Specifications:
- Electrical Rating: 50mA @ 12VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min at 500VDC
- Dielectric Strength: 250VAC for 1 min
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 185 gf or 260 gf
- Travel: 0.15mm
- Contact Arrangement: SPST
- Surface mount, right angle options available
- Actuator options include various sizes and actuation forces
- Dimensions: Front face approximately 6.06mm x 6.06mm, height varied as per actuator
- Material: Silver contact material, durable plastic housing
Buy the ACME TL3360 Series – Reliable Tactile Switches for Industrial Applications
Order the ACME TL3360CF260Q tactile switch today online and equip your industrial automation projects with high-quality, reliable switches. Featuring multiple actuator options, operating forces of 185 gf and 260 gf, and a travel of 0.15mm, this surface-mount SPST switch ensures durability for demanding environments. With a 50mA at 12VDC rating, 200,000 cycle lifespan, and robust resistance qualities, it’s perfect for control panels, automation equipment, and industrial controls. Secure your supply now for seamless installation and dependable operation.
Buy ACME TL3360CF260Q now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH TL3360CF260Q?
You can click on the BUY or RFQ button to purchase TL3360CF260Q from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3360CF260Q?
You can download the TL3360CF260Q datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3360CF260Q?
E-SWITCH
