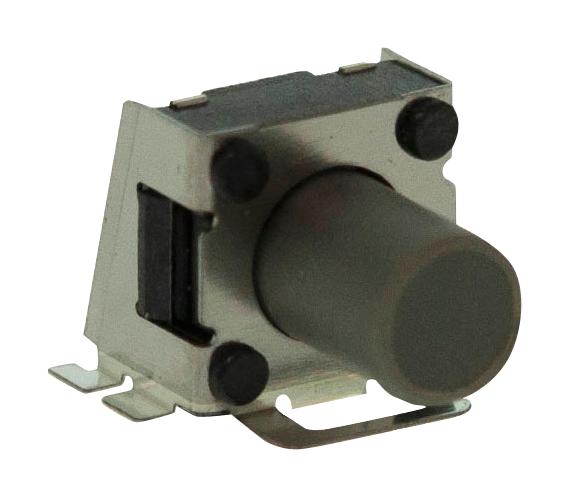

E-SWITCH TL3360DF185Q Tact Switch
The TL3360 series tact switches are compact, surface-mount electrical switches designed for industrial and instrumentation applications. Featuring a SPST contact arrangement, they support an electrical rating of 50mA at 12VDC and have a contact resistance of up to 100mΩ. These switches are rated for 200,000 cycles and operate within a temperature range of -25°C to 70°C. They offer multiple actuator options, including right-angle and surface mount configurations, with operating forces of 185 gf or 260 gf. Dimensions and actuation travel are optimized for reliable performance in various environments.
E-SWITCH TL3360DF185Q Tact Switch Specifications:
- Electrical Rating: 50mA @ 12VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500VDC
- Dielectric Strength: 250VAC for 1 min.
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Contact Arrangement: SPST
- Actuation Force Options: 185 gf, 260 gf
- Travel: 0.15mm
- Dimensions of front face: approximately 6.06mm x 5.33mm
- Material: Silver contacts
- Mounting: Surface mount, right angle
- Actuator Options: Various sizes (e.g., 2.80mm, 4.00mm, 4.35mm)
Buy the Xiaomi TL3360 – Reliable Tact Switch for Industrial Applications
Order the Xiaomi TL3360 tact switch online today for dependable performance in demanding environments. These switches feature a SPST contact configuration, support 50mA at 12VDC, and are rated for 200,000 cycles. They offer multiple actuator options, including right-angle and surface mount configurations, with operating forces of 185 gf or 260 gf. Compact dimensions and high insulation resistance make them ideal for industrial and instrumentation applications. Purchase now for reliable switching performance and durable construction.
Get Xiaomi TL3360 tactical switches today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH TL3360DF185Q?
You can click on the BUY or RFQ button to purchase TL3360DF185Q from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL3360DF185Q?
You can download the TL3360DF185Q datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL3360DF185Q?
E-SWITCH
