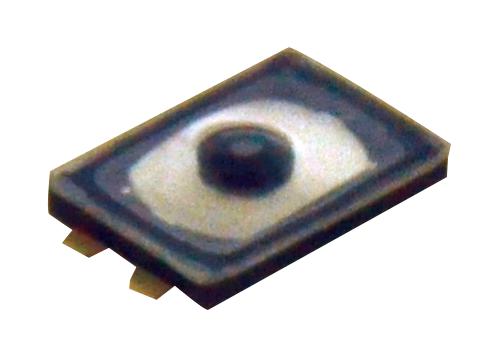

E-SWITCH TL3780AF100QG Electronic Switch
This high-quality SPST switch features silver contact material and a contact rating of 50 mA at 12 VDC, designed for reliable switching in electronic circuits. It has an operating force of 100 ± 50 grams and a travel distance of 0.13 ± 0.05 mm, ensuring precise actuation. With a maximum contact resistance of 500 mΩ and an insulation resistance of at least 50 MΩ at 100 VDC, it withstands voltages up to 250 VAC for one minute without breakdown. Suitable for temperature ranges from -40°C to +85°C, this rohs-compliant, halogen-free switch provides long-term durability for various electronic applications.
E-SWITCH TL3780AF100QG Electronic Switch Specifications:
- Contact Material: Silver
- Contact Rating: 50 mA at 12 VDC
- Travel: 0.13 ± 0.05 mm
- Operating Force: 100 ± 50 grams
- Electrical Life: 300,000 cycles
- Contact Resistance: Max 500 mΩ
- Insulation Resistance: Min 50 MΩ at 100 VDC
- Dielectric Strength: 250 VAC for 1 minute
- Operating Temperature: -40°C to +85°C
- RoHS Compliant: Yes
- Halogen Free: Yes
Buy the Buy Switch Part Number TL3780AF100QG Online
Order the high-quality electronic switch part number TL3780AF100QG online now to ensure reliable performance in your electronic projects. Designed with silver contacts, this SPST switch offers a contact rating of 50 mA at 12 VDC, suitable for precise and durable circuit control. Its travel of 0.13 mm and operating force of 100 grams provide excellent tactile feedback. Certified RoHS compliant and halogen-free, it withstands temperatures from -40°C to +85°C, making it ideal for a wide range of industrial and electronic applications. Purchase today for quality and reliability.
Get Switch Part Number TL3780AF100QG today—engineered for precise operation and long-lasting durability.
