E-SWITCH TL4115AF160Q Surface Mount Switch
The TL4115 series switch is an anti-vandal switch with SPST Off-On contact arrangement, rated for 12VDC at 50mA, with a contact resistance of 500mΩ maximum. It features a dielectric strength of 250VAC for 1 minute, an electrical life of 600,000 cycles, and operates between -30°C to 85°C. Designed for rugged applications, it offers low travel, right-angle surface mount, and tape & reel packaging, ideal for reliable, high durability electronic systems.
E-SWITCH TL4115AF160Q Surface Mount Switch Specifications:
- Contact Arrangement: SPST Off - (On)
- Contact Rating: 12VDC, 50mA
- Contact Resistance: 500mΩ Max. (Initial)
- Insulation Resistance: 100MΩ Min. at 100VDC
- Dielectric Strength: 250VAC for 1 Minute
- Electrical Life: 600,000 Cycles
- Operating Temperature: -30°C to 85°C
- Mounting Type: Right angle edge surface mount
- Packaging: Tape and Reel
- Low travel, 0.15mm actuation
- Series: TL4115
- Dimensions: Length 8.00mm, Width 4.00mm, Height 5.50mm, PWB hole size 1.75mm, Actuator force 160gf or 220gf
- Designed for high durability and reliable switching in industrial electronics

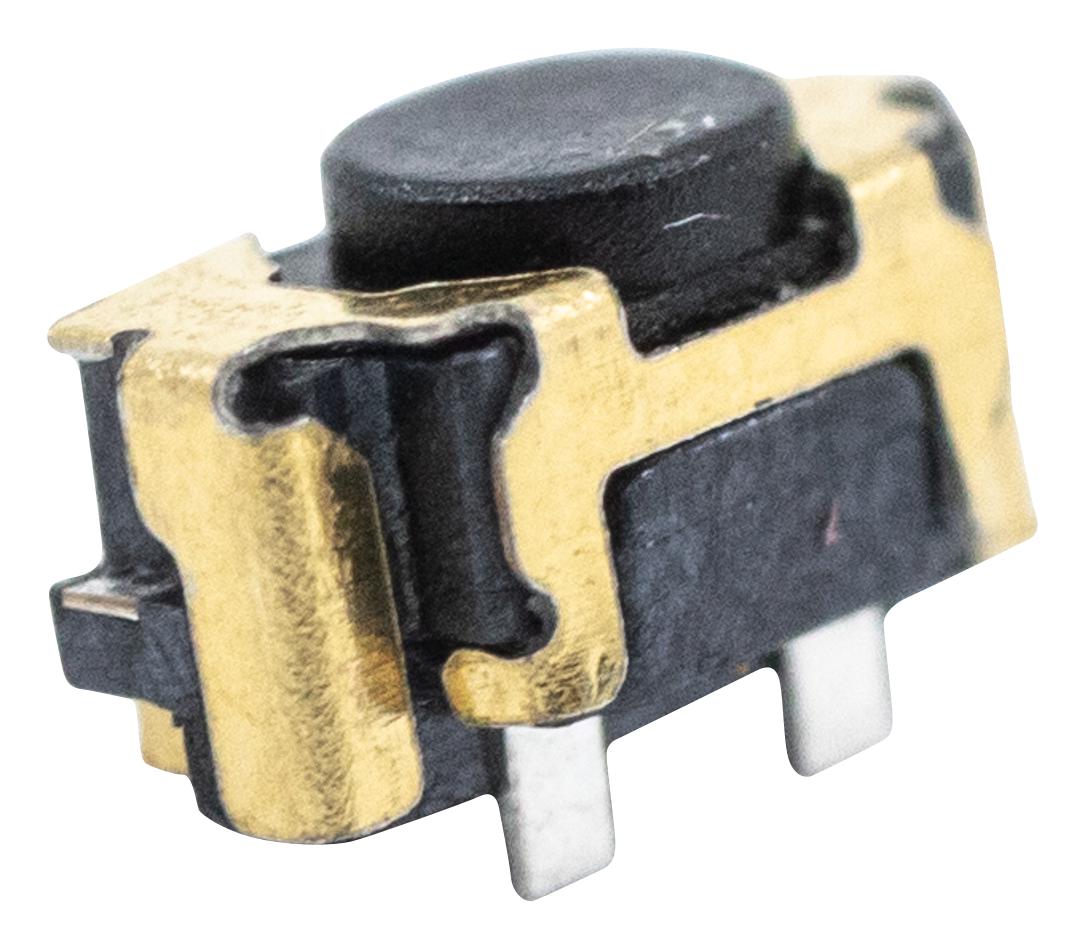

Buy the Buy E-Switch TL4115 Series Switch Part Number TL4115AF160Q Online
Order the E-Switch TL4115AF160Q surface mount switch online today to benefit from its rugged build, high cycle life of 600,000 cycles, and reliable SPST operation. Ideal for industrial, commercial, and security applications, this switch features low travel, a compact design, and a tape and reel packaging for easy automated assembly. Ensure your electronic device's durability and consistent performance by choosing this high-quality, surface-mount switch from a trusted manufacturer. Buy now for fast delivery and dependable operation.
Buy E-Switch TL4115AF160Q now and experience unmatched reliability and performance with rugged, long-life surface mount switches suitable for harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH TL4115AF160Q?
You can click on the BUY or RFQ button to purchase TL4115AF160Q from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL4115AF160Q?
You can download the TL4115AF160Q datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL4115AF160Q?
E-SWITCH
