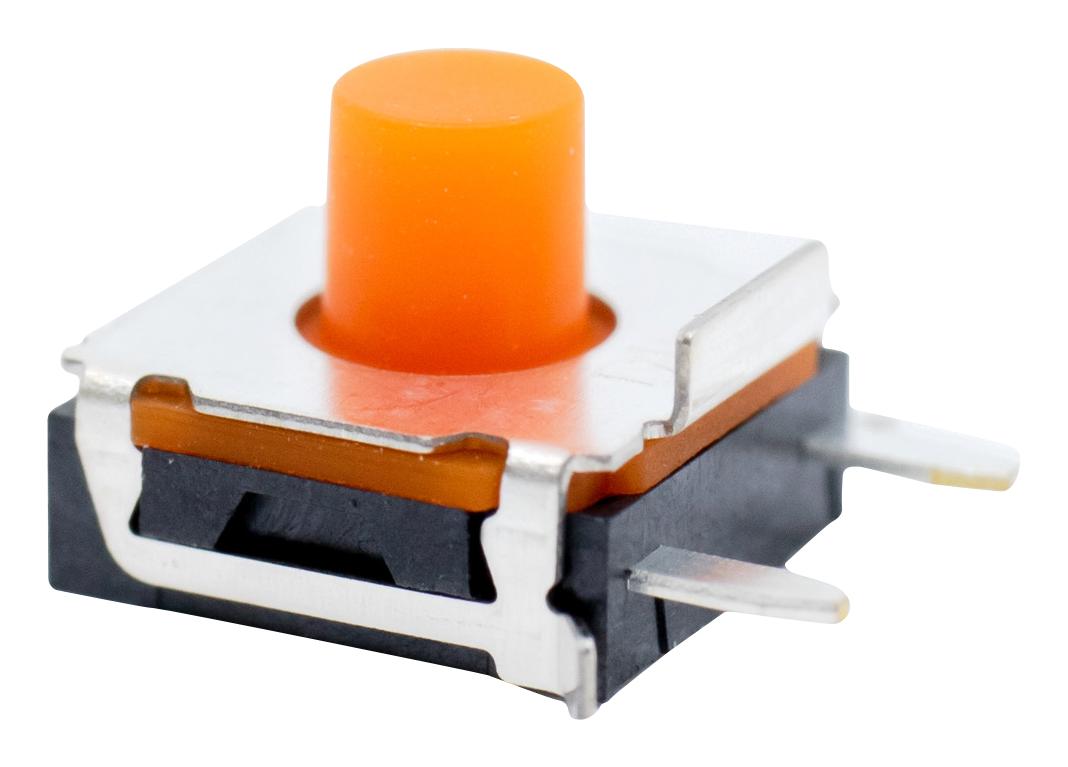

E-SWITCH TL6155AF350Q Tactile Switch
The TL6155AF350Q series tactile switch offers reliable SPST operation with a 50mA, 32VDC rating, and an IP67 dust and moisture-proof design. Built for around 300,000 cycles, it features a compact, 6.6mm size with orange actuator color, ideal for surface-mount applications. This switch is designed for durability and precise actuation, with a travel of 0.5mm and operating temperature range from -40°C to 85°C. Its robust construction makes it suitable for industrial control panels, instrumentation, and automation systems requiring high cycle life and environmental resistance.
E-SWITCH TL6155AF350Q Tactile Switch Specifications:
- Contact Rating: 50mA, 32VDC
- Cycle Life: 300,000 cycles
- Contact Resistance: 100mΩ Max. (Initial)
- Insulation Resistance: 10MΩ Min. at 100VDC
- Dielectric Strength: 250VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 350gf + 100gf
- Travel: 0.5mm
- Dust/Moisture Protection: IP67
- Function: SPST, Off-(On)
- Size: 6.60mm
- Actuator Color: Orange
- Material: Metal and plastic
- Mounting Style: Surface-mount
- Dimensions: 6.60mm length, 1.60mm width
- Recommended PCB Layout: Includes pads and recommended footprint
Buy the Buy Industrial Switch Parts Series TL6155AF350Q Online
Order the TL6155AF350Q tact switch online today to ensure reliable performance in industrial automation, instrumentation, and control panels. Built for high cycle life, this surface-mount switch features IP67 dust and moisture protection, a compact size, and a quick, responsive actuation with a travel of 0.5mm. With a rated current of 50mA at 32VDC and a durable construction supporting 300,000 cycles, it is ideal for applications demanding long-lasting, environmental-resilient switches. Secure your supply now for seamless integration into your control systems.
Get TL6155AF350Q tactile switch today—designed for high durability, environmental sealing, and millions of reliable operations in industrial controls.
