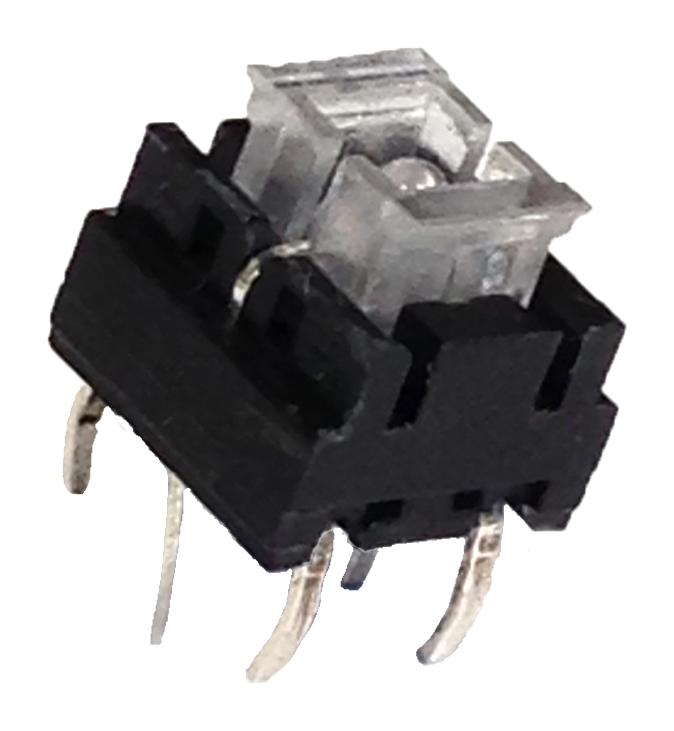

E-SWITCH TL6275AA2PQNR Toggle Switch
The TL6275 series toggle switch is a versatile, high-quality component designed for reliable electronic switching applications. Featuring SPST contact arrangement and an operating temperature range of -25°C to 70°C, it offers a contact rating of 50mA at 12VDC and an electrical life of 100,000 cycles. The switch includes various cap options with illumination features like red, blue, green, white, yellow, and translucent high or square styles. Its durable construction supports PCB mounting and water wash resistance, making it ideal for industrial, control, and automation systems requiring precise and durable toggle operation.
E-SWITCH TL6275AA2PQNR Toggle Switch Specifications:
- Contact Arrangement: SPST
- Contact Rating: 50mA @ 12VDC
- Contact Resistance: 100mΩ Initial
- Insulation Resistance: 100 MΩ Min.
- Dielectric Strength: 250V RMS
- Electrical Life: 100,000 cycles
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -25°C to 70°C
- Travel: 0.25mm
- Actuation Force: 350 gf
- Cap Options: Transparent, Opaque, Translucent, High, Square, Circle
- Cap Colors: Red, Blue, Green, White, Yellow, None
- Termination: PCB Pins, Thru Hole
- Dimensions: Actuator length approximately 7.20-9.80 mm, housing varies depending on model
- Water Wash Resistant: Yes
Buy the Buy Bey Switch Part Number TL6275AA2PQNR Online
Purchase the Bey toggle switch online now to ensure your control systems feature high reliability and durable toggle operation. This switch offers a SPST contact arrangement rated at 50mA/12VDC, with a long electrical life of 100,000 cycles. It includes waterproof and wash-resistant features suitable for industrial environments. Choose from various cap options, including translucent and opaque styles with LED illumination in multiple colors, ensuring optimal visibility and performance. Easy PCB mounting makes installation quick and reliable for automation, industrial, and control applications.
Get Bey switch TL6275AA2PQNR today—built for precise toggle operation with durable waterproof design and LED illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH TL6275AA2PQNR?
You can click on the BUY or RFQ button to purchase TL6275AA2PQNR from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL6275AA2PQNR?
You can download the TL6275AA2PQNR datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL6275AA2PQNR?
E-SWITCH
