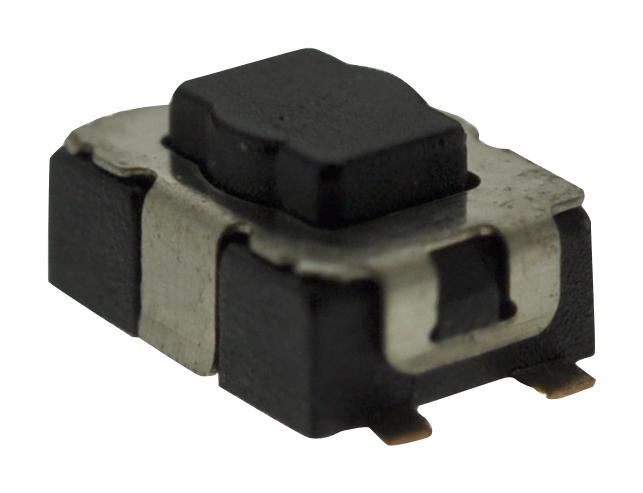

E-SWITCH TL6330AF200Q Tact Switch
The TL6330 Series Tact Switch is a small, surface-mount PCB design switch designed for rugged applications requiring high durability and IP67 dust and moisture protection. It features a contact rating of 1VA @ 32VDC, an electrical life of 200,000 cycles, and operates within a temperature range of -40°C to 85°C. The switch has a contact resistance of 100mΩ max, insulation resistance of at least 1GΩ @ 500VDC, and an actuation force of 200gf. Its compact dimensions (approximately 2.80mm x 4.60mm x 1.90mm) make it ideal for anti-vandal, navigation, and detector switch applications in demanding environments.
E-SWITCH TL6330AF200Q Tact Switch Specifications:
- Contact Rating: 1VA @ 32VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 1GΩ Min @ 500VDC
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Travel: 0.25mm
- Contact Arrangement: SPST
- Actuation Force: 200gf
- Dust/Moisture Protection: IP67
- Body Dimensions: 2.80mm x 4.60mm x 1.90mm
- Material: Silver contact
- Surface Mount PCB Design
Buy the Innovative TL6330 Series Tact Switch – Reliable Switch for Industrial Applications
Enhance your project with the TL6330 Series Tact Switch, a durable surface-mount switch offering IP67 protection, 200,000 cycles longevity, and precise actuation. Suitable for anti-vandal, navigation, and detector applications, this compact switch operates reliably from -40°C to 85°C. Combining high insulation resistance and a small, robust design, it ensures dependable performance in demanding environments. Purchase online today and secure the quality and durability essential for your industrial and electronics projects.
Order your TL6330 Series Tact Switch today and get a high-performance switch designed for rugged industrial and navigation projects.
Frequently Asked Questions
Where can I buy E-SWITCH TL6330AF200Q?
You can click on the BUY or RFQ button to purchase TL6330AF200Q from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TL6330AF200Q?
You can download the TL6330AF200Q datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TL6330AF200Q?
E-SWITCH
