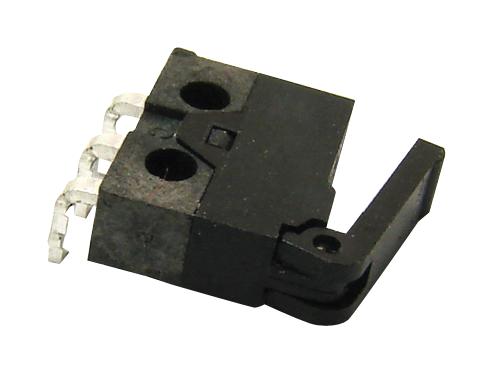

E-SWITCH TS0101F020V1 Snap Action Switch
The TS series SNAP ACTION SWITCHES are sub-miniature, reliable devices suitable for security detection, instrumentation, and appliance applications. These switches feature vertical and right-angle pin terminations with options for PCB mounting, including short and long PCB angles. Designed to operate between -25°C to 85°C with an insulation resistance of 100M ohms minimum @ 100VDC, they offer 50,000 cycles electrical life and 100,000 cycles mechanical life. Typical applications include security systems, detection devices, and industrial automation where compact, durable switch components are critical.
E-SWITCH TS0101F020V1 Snap Action Switch Specifications:
- Contact Rating: 0.3A @ BvD
- Electrical Life: 50,000 cycles typical
- Mechanical Life: 100,000 cycles
- Insulation Resistance: 100M ohms minimum @ 100VDC
- Dielectric Strength: 250 VAC for 60 seconds
- Operating Temperature: -25°C to 85°C
- Storage Temperature: -30°C to 85°C
- Actuator Types: PCB short/long, right/left angular
- Contact Material: Not specified
- Dimensions: Length varies from 0.323 to 0.883 inches, width approximately 0.197 inches
- Termination Options: Vertical PCB pins, right or left angle mounting
- Switch Type: Snap action
Buy the WwW Series SNAP ACTION SWITCHES: TS0101F020V1
Purchase the WwW Series Snap Action Switch online today to enhance your detection, security, or automation systems. Designed for durability with high cycle life, these switches provide reliable operation in various environments. Compact and versatile, they feature PCB mounting options, including vertical and right-angle pins, suitable for space-constrained applications. Optimize your projects with switches rated for 50,000 electrical cycles and 100,000 mechanical cycles, ensuring dependable performance in security detection, instrumentation, and industrial automation. Buy now for prompt delivery and expert support.
Order your WwW Series TS0101F020V1 today and ensure your detection and automation projects benefit from reliable, durable, and compact switch solutions.
Frequently Asked Questions
Where can I buy E-SWITCH TS0101F020V1?
You can click on the BUY or RFQ button to purchase TS0101F020V1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part TS0101F020V1?
You can download the TS0101F020V1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of TS0101F020V1?
E-SWITCH
