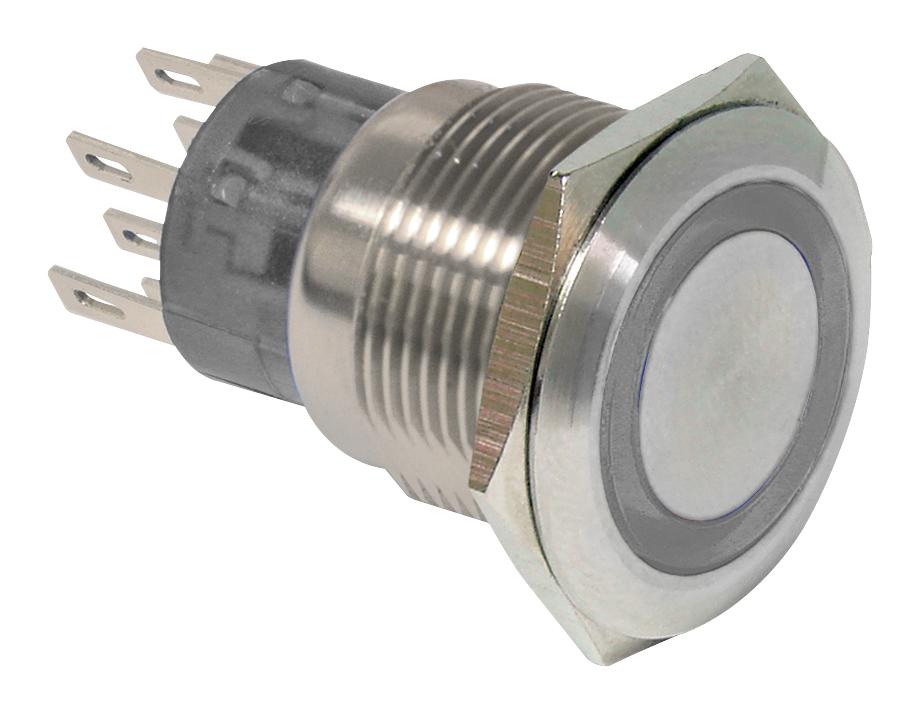

E-SWITCH ULV4F23SS311DD Anti-Vandal Switch
The ULV4 series anti-vandal switch offers robust design with IP67 moisture protection, up to 1,000,000 mechanical cycles, and certifications for reliable industrial use. Available in SPDT or DPDT contact arrangements, it features illuminated and non-illuminated options, with voltage choices from 3V to 220V. Suitable for panel mounting with a 19mm diameter cutout, the switch supports various actuator styles including pushbutton, toggle, and tactile. Its durability and customizable graphics make it ideal for industrial, security, and automation applications, ensuring long-lasting performance.
E-SWITCH ULV4F23SS311DD Anti-Vandal Switch Specifications:
- Contact Resistance: 50mQ
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Operating/Storage Temperature: -20°C to 55°C
- Ingress Protection: IP67
- Panel Thickness: 1-10mm
- Thread Size: M19 x 1.0
- Dimensions: Diameter 19mm, various actuator sizes
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Voltage Options: 3-6V, 12V, 24V, 110V, 220V
- Contact Arrangement: SPDT or DPDT
- Certifications: UL Certified, cURus
- Material: Steel, stainless steel options available
- Rating: 3A at 125/250VAC
- Sealing: Fully sealed for moisture resistance
- Illumination: Optional LED with various color options
Buy the Valpower ULV4F23SS311DD – Reliable Industrial Anti-Vandal Switch for Industrial Applications
Discover the durable and versatile Anti-Vandal Switch from Valpower, designed for industrial environments needing reliable control and illumination options. With IP67 rating, it resists moisture and dust, making it suitable for harsh conditions. Its high cycle life of up to one million mechanical cycles ensures long service life, while various contact configurations and illumination choices meet diverse application requirements. Easy to install with a 19mm panel cutout, this switch supports automation, security, and industrial equipment, offering dependable performance and customization options for tailored solutions.
Buy Valpower ULV4F23SS311DD now and experience unmatched reliability and performance for your industrial switches and automation needs.
