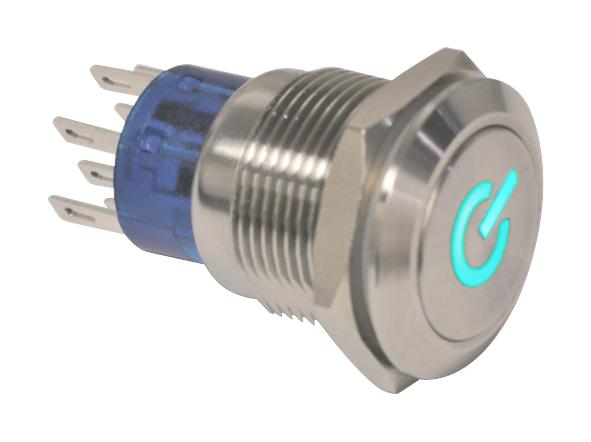

E-SWITCH ULV4F2BSLL15L35 Anti-Vandal Switch
The ULV4 Series anti-vandal switches are robust, IP67-rated electrical switches designed for harsh environments. They feature options for illumination, including ring, dot, and power symbols, with various actuation and wiring configurations. Available in SPDT and DPDT functions, these switches support a panel cutout of 19mm diameter and can be ordered with detachable sockets and long wire leads made of 24 AWG or 18 AWG wire. They comply with UL standards and have a mechanical life of up to 1 million cycles, making them suitable for industrial and security applications.
E-SWITCH ULV4F2BSLL15L35 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Insulation Resistance: 1,000MΩ min. @ 500 VDC
- Dielectric Strength: 2,000V RMS at sea level
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Thickness: 1-10mm
- Thread Size: M19 x 1.0
- Dimensions (SPDT): 17.50mm diameter, 13.00mm height
- Dimensions (DPDT): 22.00mm diameter, 15.50mm height
- Wire Options: 300mm or 500mm lengths, 24 AWG or 18 AWG UL approved wires
- Wiring configuration includes LED (+) and (-) terminals for illuminated options
- Agency Approvals: cURus, UL Certified
Buy the Vandal Series Anti-Vandal Switch: ULV4F2BSLL15L35
Purchase the ULV4 Series anti-vandal switch online today and ensure reliable, durable performance in harsh environments. Featuring IP67 moisture protection, long-lasting mechanical and electrical life, and customizable illumination with dot, ring, or power symbols, these switches are ideal for security, industrial, and control applications. Available with detachable sockets and long wiring options, they are UL certified and compliant with international standards. Shop now for fast delivery and secure online checkout, enhancing your project’s safety and functionality with high-quality, easy-to-install switches designed for demanding conditions.
Get ULV4 Series anti-vandal switches today—built for durability, IP67 protection, and versatile illumination options for industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4F2BSLL15L35?
You can click on the BUY or RFQ button to purchase ULV4F2BSLL15L35 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4F2BSLL15L35?
You can download the ULV4F2BSLL15L35 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4F2BSLL15L35?
E-SWITCH
