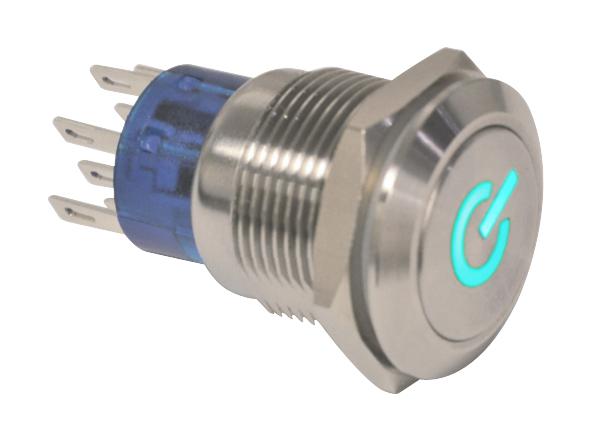

E-SWITCH ULV4F2BSLL34L20 anti-vandal switch
The ULV4 Series anti-vandal switches are durable, IP67-rated devices designed for reliable operation in tough environments. They offer SPDT and DPDT contact configurations with illumination options, suitable for industrial, control panels, and security applications. These switches feature a 19mm panel cutout, long wire leads, and optional molded backs or detachable sockets. They operate within -20°C to 55°C, have mechanical and electrical lifespans up to 1,000,000 and 50,000 cycles respectively, and are certified for UL and CSA standards, ensuring safety and longevity.
E-SWITCH ULV4F2BSLL34L20 anti-vandal switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Insulation Resistance: 1,000MΩ min. @ 500 VDC
- Dielectric Strength: 2,000V RMS
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Ultra-Low Voltage Series Anti-Vandal Switch: ULV4F2BSLL34L20
Order the ULV4 Series anti-vandal switch online now to experience robust IP67-rated design with IP67 protection, illuminated options, and customizable graphics. These switches are ideal for industrial control, security systems, and machinery, providing up to 1,000,000 cycles of mechanical life and UL and CSA certifications for safety. Features include a 19mm panel cutout, long 300mm or 500mm wire leads, and optional molded back or detachable socket. Purchase today for reliable, heavy-duty performance in demanding environments.
Get ULV4 Series anti-vandal switches today—built for industrial durability, long-lasting operation, and versatile control options.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4F2BSLL34L20?
You can click on the BUY or RFQ button to purchase ULV4F2BSLL34L20 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4F2BSLL34L20?
You can download the ULV4F2BSLL34L20 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4F2BSLL34L20?
E-SWITCH
