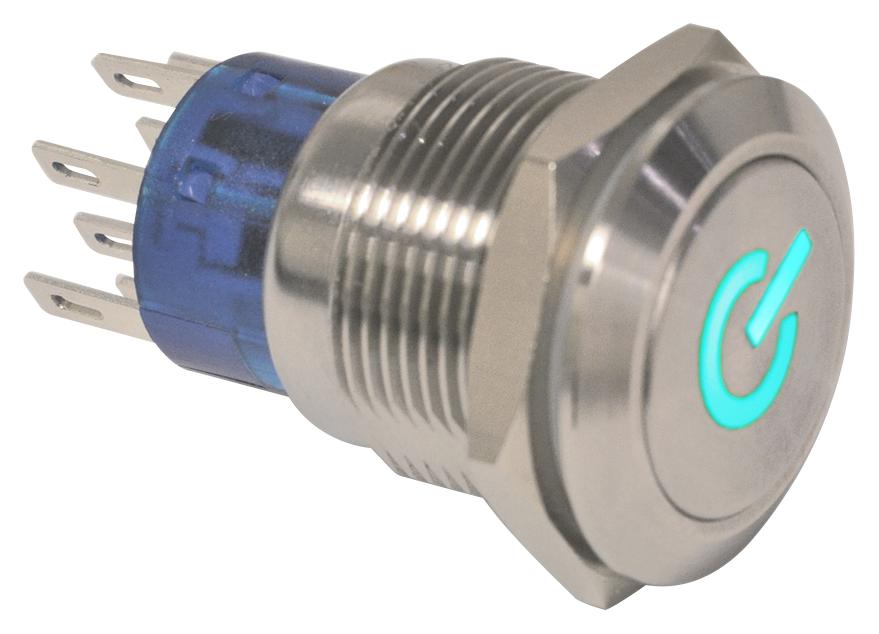

E-SWITCH ULV4F2BSS311 Vandal-Proof Switch
This anti-vandal switch series offers robust, IP67 rated switches with solid mechanical and electrical durability, suitable for medical and industrial applications. Features include illuminated and non-illuminated options, with various actuator styles, contact configurations (SPDT, DPDT), and a 22mm panel cutout. The switches support operating temperatures from -20°C to 55°C, have a mechanical life of 1,000,000 cycles (momentary) or 500,000 cycles (latching), and are UL-listed. They include customizable graphics, illumination voltage options, and keylock features for secure operation.
E-SWITCH ULV4F2BSS311 Vandal-Proof Switch Specifications:
- Electrical Rating: 3A, 250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Mechanical Impact Protection: IK10
- Agency Approvals: cURus
Buy the Vandal-Proof Switch Series Anti-Vandal: ULV4F2BSS311
Purchase the ULV4F2BSS311 vandal-proof switch online today for your industrial or medical equipment needs. Designed with IP67 rating and high durability, it features illuminated and non-illuminated options, customizable graphics, and secure keylock options. Supports a wide temperature range from -20°C to 55°C, with a 22mm panel cutout suitable for various applications. Reliable for both momentary and latching operations, this switch ensures long-lasting service life, UL listing, and superior impact resistance for demanding installations.
Get ULV4F2BSS311 vandal-proof switch today—built for durability and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4F2BSS311?
You can click on the BUY or RFQ button to purchase ULV4F2BSS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4F2BSS311?
You can download the ULV4F2BSS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4F2BSS311?
E-SWITCH
