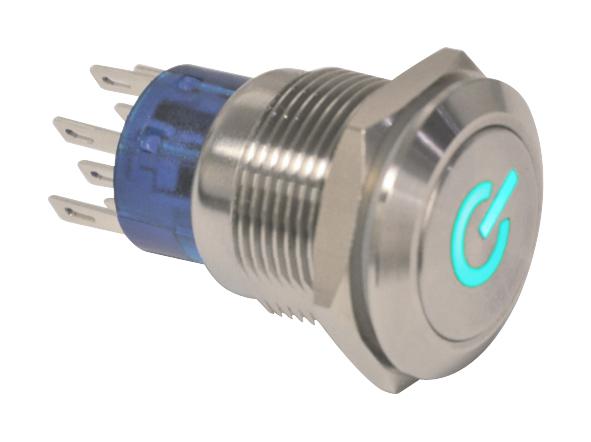

E-SWITCH ULV4F2GSLL43L18 Vandal Switch
The ULV4 Series anti-vandal switches offer enhanced durability with IP67 moisture protection, mechanical and electrical longevity, and versatile configurations. Available in SPDT, DPDT, illuminated or non-illuminated variants, these switches feature a 19mm panel cutout, stainless steel impact protection, and various wiring and graphics options. Suitable for industrial, control panels, and automation systems where reliability and tamper resistance are essential, they comply with UL certifications. Their rugged design ensures dependable performance in harsh environments, making them ideal for security, machinery, and safety applications.
E-SWITCH ULV4F2GSLL43L18 Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max. at 1A 12VDC
- Insulation Resistance: 1,000MΩ min. @ 500 VDC
- Dielectric Strength: 2,000V RMS
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Thickness: 1-10mm
- Thread Size: M19 x 1.0
- Impact Protection: Stainless steel IK10
- Certifications: UL Listed, cULus
- Body Diameter: approx. 19mm
- Dimensions: Main diameter 22mm, depth approx. 13mm, various orientation options
- Wire Options: 18 AWG, 500mm long, with various color-coded wiring leads
Buy the Vandal Switch Series ULV4: ULV4F2GSLL43L18
Purchase your Vandal Switch Series ULV4F2GSLL43L18 online today to benefit from rugged durability, IP67 moisture protection, multiple wiring options, and UL certification. These switches are designed for industrial applications where reliability, tamper resistance, and long lifecycle are critical. With various graphic and illumination options, they enhance safety and control interfaces in harsh conditions. Secure your project’s reliability with a trusted, easy-to-order anti-vandal switch that guarantees performance and safety in demanding environments.
Order your Vandal Switch Series ULV4F2GSLL43L18 today and ensure reliable, tamper-resistant performance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4F2GSLL43L18?
You can click on the BUY or RFQ button to purchase ULV4F2GSLL43L18 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4F2GSLL43L18?
You can download the ULV4F2GSLL43L18 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4F2GSLL43L18?
E-SWITCH
