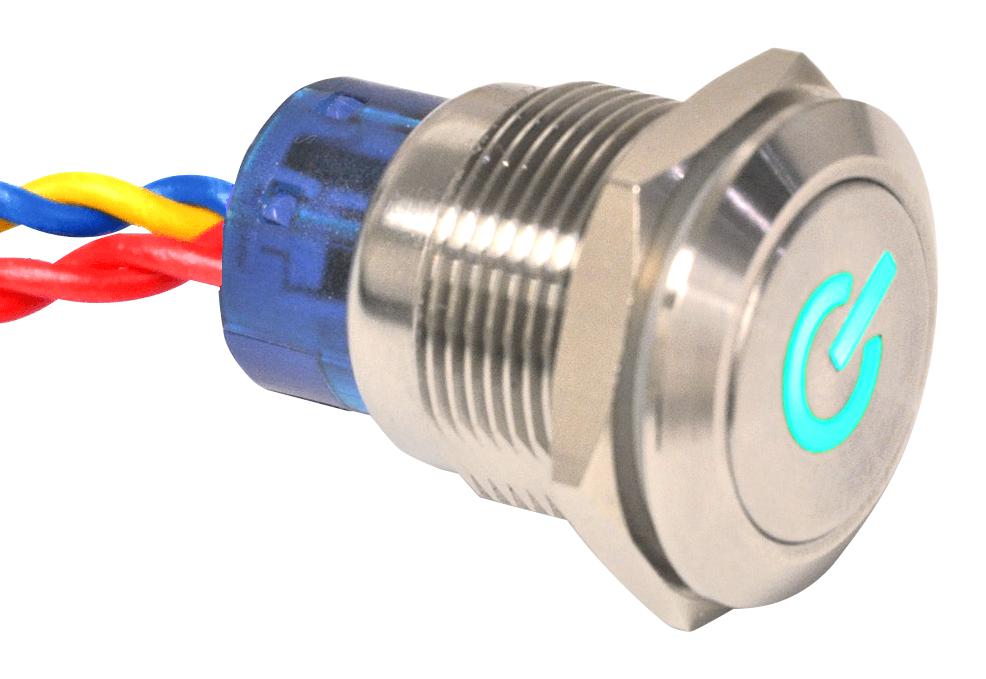

E-SWITCH ULV4FMBSS544 Anti-Vandal Switch
The ULV4 Series Anti-Vandal Switches are durable, IP67-rated devices designed for industrial and security applications. They feature options including SPDT, DPDT, rocker, pushbutton, keylock, and navigation switches with illuminated and non-illuminated variants. These switches support mechanical life of 1,000,000 cycles, electrical life of 50,000 cycles, and contact resistance of 50mΩ. With threaded mounting, various actuator options, and wiring configurations, they are suitable for demanding environments requiring reliable, tamper-resistant operation and customizable graphic options for enhanced visibility and user interface.
E-SWITCH ULV4FMBSS544 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
- Body Dimensions: 22.00 mm diameter, threads M19 x 1.0, height approximately 25.50 mm
- Wiring Options: Wire leads (300mm or 500mm), wire gauge 24-18 AWG, UL approved
- Illumination: LED options with voltage from 1.5V to 220V, various color choices, and graphic options
- Mounting: Threaded, panel cutout 19mm diameter, IP67 rated for outdoor and harsh environments
Buy the Vandal Resistant Switch Series ULV4: ULV4FMBSS544
Purchasing the ULV4 Series Anti-Vandal Switch online ensures you receive a rugged, IP67-rated switch suitable for industrial, security, and outdoor applications. These switches offer multiple functions, including rocker, pushbutton, and keyed options, with illuminated and non-illuminated styles. Featuring high durability with a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, they support reliable operation in demanding environments. Easy to install with threaded mounting, various wiring configurations, and graphic options, these switches are ideal for maximizing security and user interface visibility in your projects.
Order your Vandal Resistant Switch Series ULV4FMBSS544 today and give your projects the dependable, tamper-proof quality they deserve for harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4FMBSS544?
You can click on the BUY or RFQ button to purchase ULV4FMBSS544 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4FMBSS544?
You can download the ULV4FMBSS544 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4FMBSS544?
E-SWITCH
