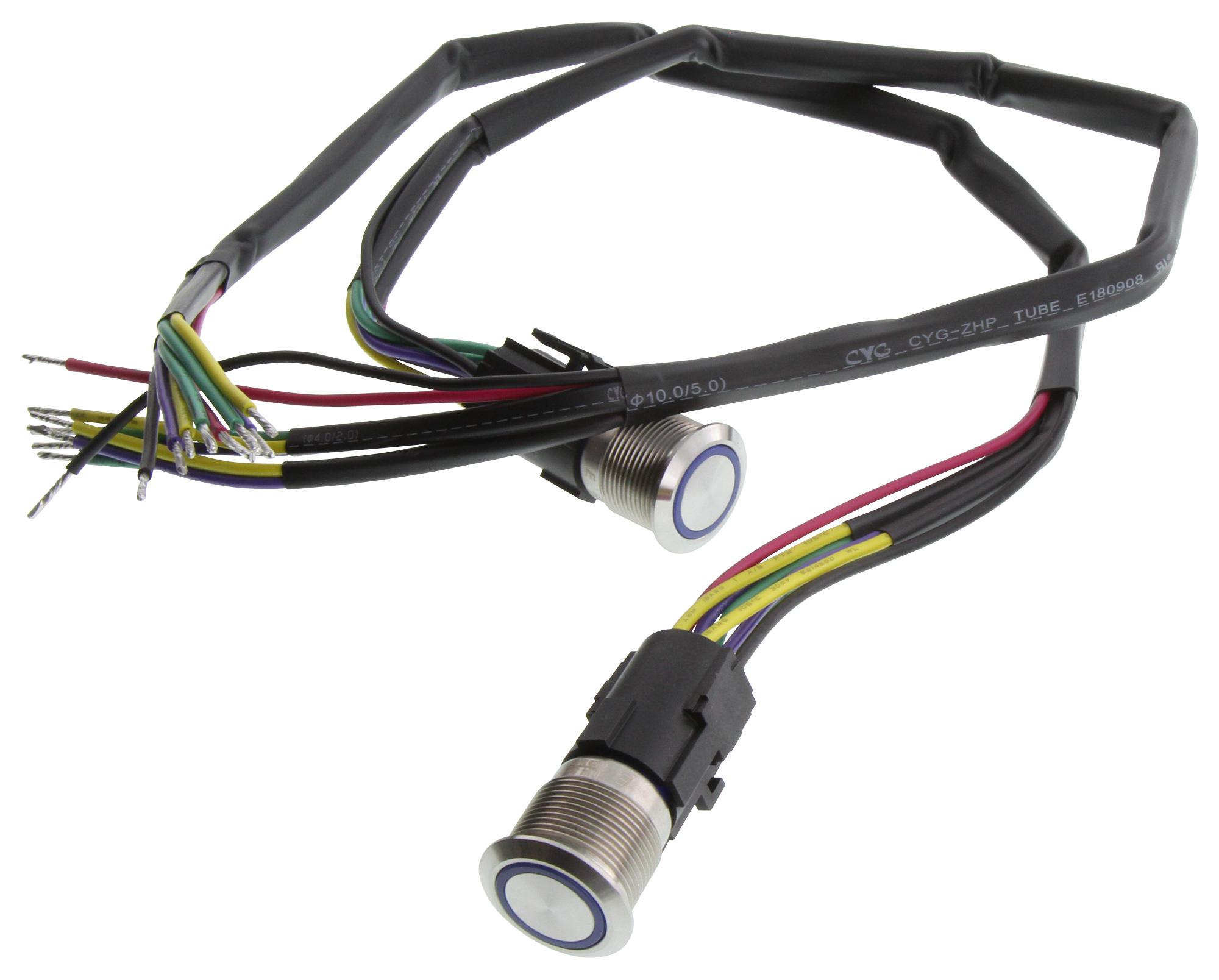

E-SWITCH ULV4FPGSS341 Anti-vandal switch
The ULV4 Series anti-vandal switches are rugged, IP67-rated mechanical switches suitable for demanding industrial applications. Featuring a 19mm panel cutout, they offer SPDT or DPDT contact arrangements with illuminated options available. These switches have a mechanical life of 1,000,000 cycles (momentary) and electrical life of 50,000 cycles, ensuring long-term durability. They are designed with stainless steel or nickel-plated finishes, operate within -20°C to 55°C temperatures, and include various wire and actuator options, making them ideal for security, control panels, and machinery.
E-SWITCH ULV4FPGSS341 Anti-vandal switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary), 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: SPDT: 2.5N; DPDT: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
Buy the Buy ULV4 Series Anti-Vandal Switch Part Number ULV4FPGSS341 Online
Order the ULV4 Series anti-vandal switch ULV4FPGSS341 online today to ensure robust security and reliable performance in industrial control panels. Engineered with long-lasting mechanical and electrical life, these switches feature stainless steel finishes, IP67 rating for moisture protection, and various actuator and wiring options. Perfect for demanding environments, they provide high durability, customizable graphics, and UL certification, making them ideal for security systems, industrial machinery, and control applications. Buy now for top-quality performance and quick delivery.
Get ULV4 Series anti-vandal switch ULV4FPGSS341 today—designed for durability, high security, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4FPGSS341?
You can click on the BUY or RFQ button to purchase ULV4FPGSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4FPGSS341?
You can download the ULV4FPGSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4FPGSS341?
E-SWITCH
