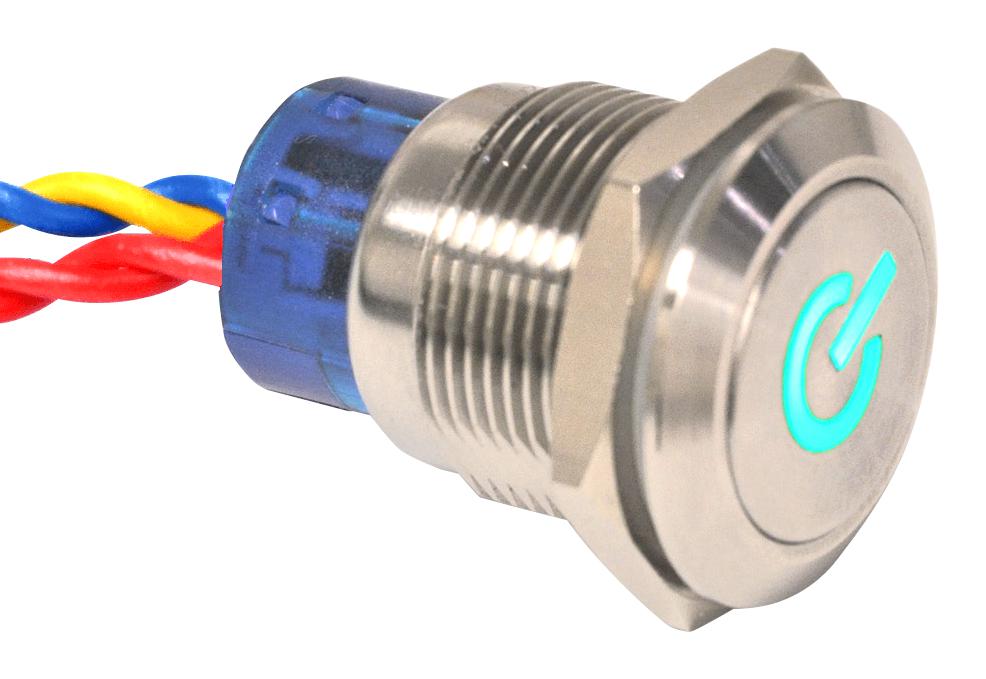

E-SWITCH ULV4FWBSS544 Anti-Vandal Switch
The ULV4 Series Anti-Vandal Switches are rugged, IP67-rated devices designed for vandal-prone environments. Featuring illuminated and non-illuminated options, these switches include SPDT, DPDT, rocker, toggle, slide, and snap action types, with various actuator and graphic customizations. They support electrical ratings up to 3A at 125/250VAC, mechanical life up to 1,000,000 cycles, and electrical life of 50,000 cycles. Compact with a 19mm panel cutout, they are ideal for industrial controls, machinery, and automation applications requiring durability, corrosion resistance, and clear symbol illumination.
E-SWITCH ULV4FWBSS544 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole 2.5N; Double Pole 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Impact Protection: IK08
- Body Dimensions: 22.00mm diameter, M19 x 1.0 thread, various graphics options, panel cutout approximately 19mm
Buy the Vandal Series Anti-Vandal Switch: ULV4FWBSS544
Order the ULV4FWBSS544 anti-vandal switch online today to ensure robust, IP67-rated switching solutions for industrial applications. Featuring illuminated options, a compact 19mm panel cutout, and high cycle durability, this switch is suitable for machinery, automation, and control panels. Its wide operating temperature range and corrosion-resistant design deliver long-lasting performance. Easy to install with customizable graphics and LED indicators, the ULV4FWBSS544 provides dependable operation in vandal-prone or harsh environments. Purchase now for reliable, industrial-grade switching performance.
Get ULV4FWBSS544 anti-vandal switches today—built for durability and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV4FWBSS544?
You can click on the BUY or RFQ button to purchase ULV4FWBSS544 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV4FWBSS544?
You can download the ULV4FWBSS544 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV4FWBSS544?
E-SWITCH
