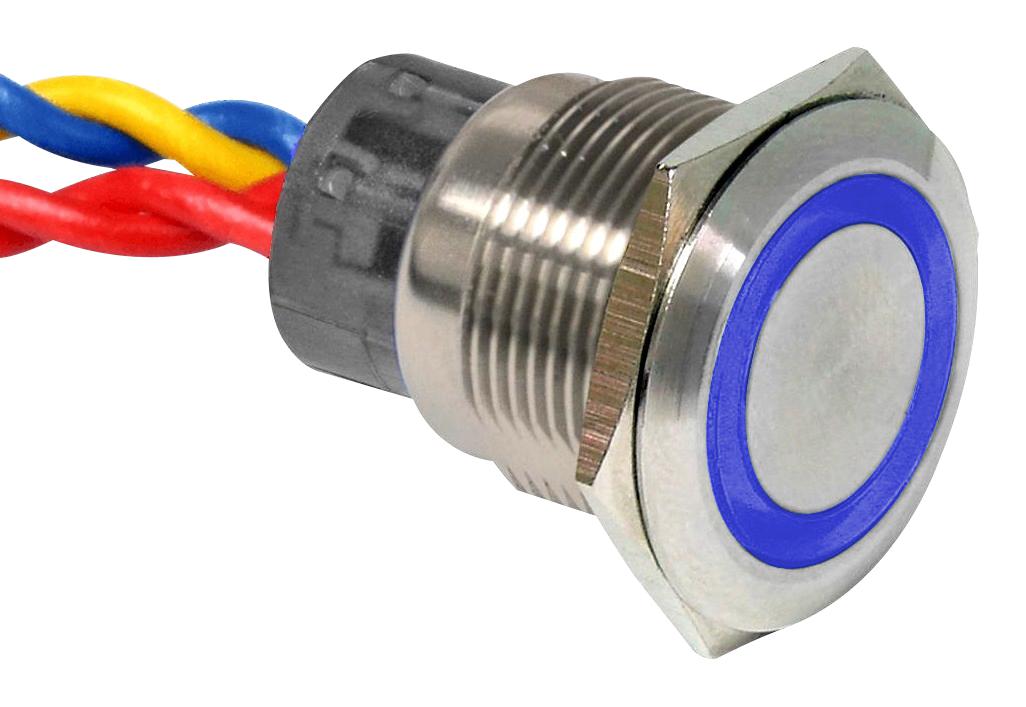

E-SWITCH ULV4FWGSS341 Vandal Switches
The ULV4 series anti-vandal switches are robust, IP67-rated devices suitable for industrial and harsh environments. They feature various actuation options including pushbutton, toggle, rocker, rotary, switch, slide, snap action, and tactile types. With a panel cutout diameter of 19mm, they support illuminated and non-illuminated configurations, offering SPDT and DPDT contact arrangements. These switches have electrical ratings up to 3A at 125/250VAC, mechanical life of up to 1,000,000 cycles, and stainless steel or nickel-plated finishes. They are approved by UL and CSA, with wire leads up to 300mm, designed for reliable, long-lasting operation in industrial control, automation, and safety applications.
E-SWITCH ULV4FWGSS341 Vandal Switches Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ
- Insulation Resistance: 1000 MQ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Cutout Diameter: 19mm
- Thread Size: M19 x 1.0
- Terminal Lengths: 300mm wire leads
- Finish Material: Stainless Steel, Nickel Plated
- Certifications: UL Listed, CSA Certified
- Wire Gauge: 24 AWG UL1015
- Wire Length: 300mm ±10mm
Buy the ULV4 Series – Reliable Vandal-Resistant Switches for Industrial Applications
Purchase ULV4 vandal-proof switches online today for your industrial automation and control projects. These durable, IP67-rated switches support multiple actuation types, including illuminated options, SPDT and DPDT contacts, and wire leads up to 300mm. Designed to withstand harsh environments, they offer long mechanical and electrical life, UL and CSA certifications, and reliable performance. Whether for machinery, safety panels, or control panels, these switches provide the robustness and flexibility necessary for demanding industrial applications. Buy now and ensure dependable operation in your systems.
Get ULV4 series vandal-proof switches today—built for precision, durability, and harsh environment reliability.
