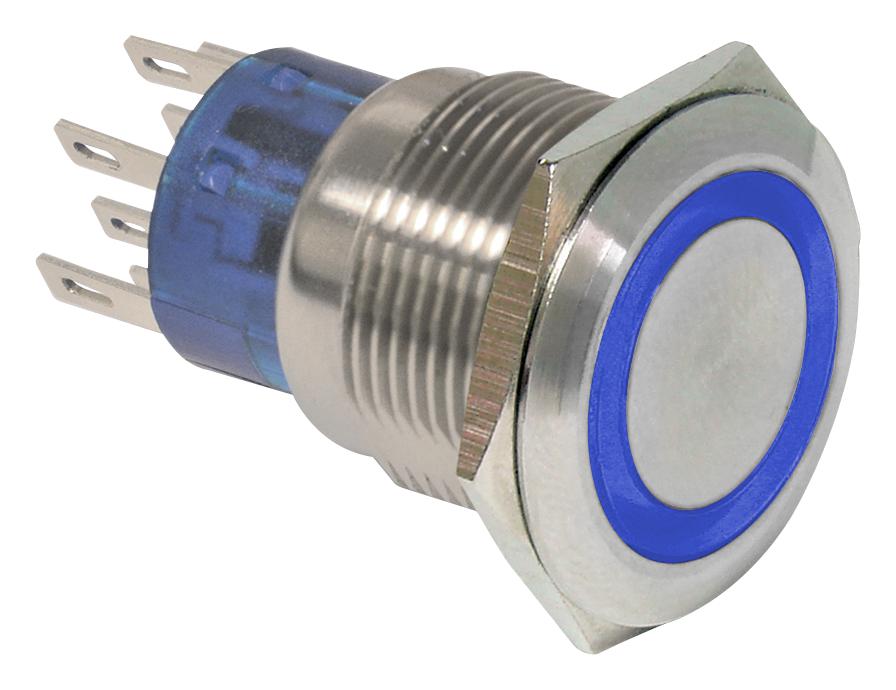

E-SWITCH ULV7F2GSS341 Anti-Vandal Switch
The ULV7 series anti-vandal switches are rugged, IP67-rated devices designed for demanding applications requiring reliable actuation. Available in SPDT and DPDT contact configurations, these switches feature illuminated options, stainless steel body and actuator, and a panel cutout compatible with 22mm diameter mounting holes. They support a mechanical life of 1,000,000 cycles for momentary and 500,000 for latching, with a rated electrical current of 3A at 250VAC. Suitable for medical equipment, industrial controls, and security systems, they ensure durability and precise operation in harsh environments.
E-SWITCH ULV7F2GSS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Mechanical Impact Protection: IK10
- Agency Approvals: cURus
Buy the Buy ULV7 Series Anti-Vandal Switch Part Number ULV7F2GSS341 Online
Purchase the ULV7 series anti-vandal switches online today to ensure your equipment benefits from highly durable, IP67-rated protection with illuminated options, stainless steel build, and reliable electrical performance. These switches are ideal for demanding industrial, medical, and security applications, offering impressive cycle life and precise actuation. With easy installation and versatile contact configurations, ordering now guarantees swift delivery for your project. Trust in the ULV7 series for superior control component performance in tough environments.
Buy ULV7F2GSS341 anti-vandal switches now and experience unmatched reliability, IP67 protection, and durable stainless steel construction for harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7F2GSS341?
You can click on the BUY or RFQ button to purchase ULV7F2GSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7F2GSS341?
You can download the ULV7F2GSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7F2GSS341?
E-SWITCH
