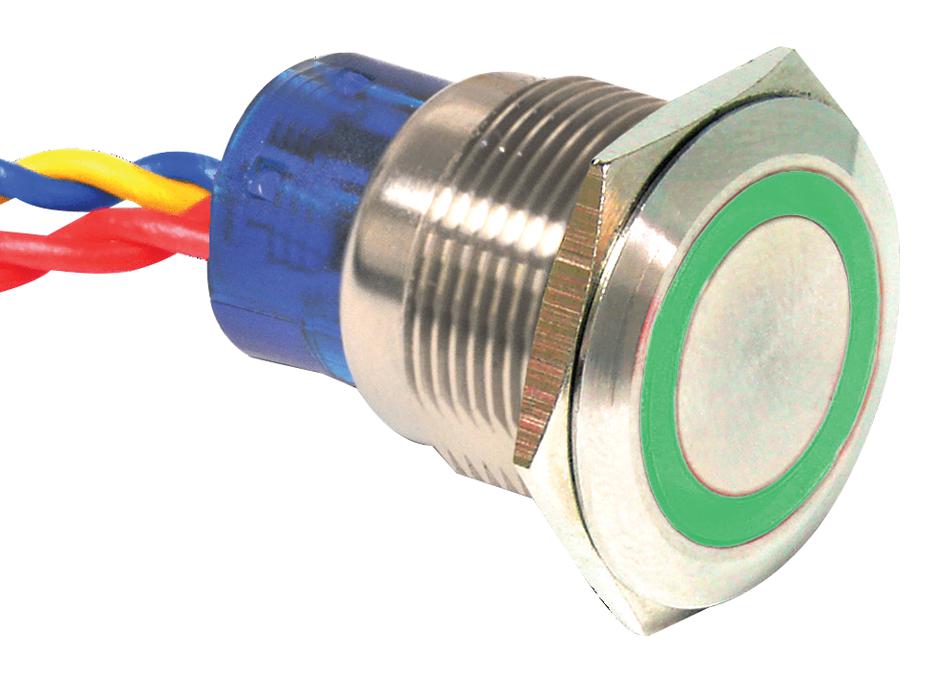

E-SWITCH ULV7FMBSS331 Anti-Vandal Switch
The ULV7 series anti-vandal switch is a durable, IP67-rated device designed for industrial applications requiring robust environmental protection. It features a 22mm diameter panel cutout, with illumination options including ring or ring/power symbols, and a variety of actuator styles such as flat, pushbutton, rocker, rotary, and slide switches. This switch offers electrical ratings up to 3A at 125/250VAC, mechanical life up to 1,000,000 cycles, and includes optional wire leads, detachable sockets, and custom graphics. Ideal for control panels, security, and machinery—built to withstand harsh conditions and provide reliable operation.
E-SWITCH ULV7FMBSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary), 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ at 500VDC
- Dielectric Strength: 2000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Panel Thickness: 1-10mm
- Moisture Protection: IP67
- Actuator options: Flat, Pushbutton, Rotary, Slide, Rocker
- Wire Leads Lengths: 300mm or 500mm with 24 or 18 AWG wire
- Certifications: UL, cURus
Buy the Brand ULV7 – Reliable Vandal-Resistant Switch for Industrial Applications
Purchase the ULV7 series anti-vandal switch online today. Designed for harsh industrial environments, it features IP67 protection, multiple actuator styles, and illumination options. With a lifespan exceeding 1 million cycles, it ensures reliable performance in control panels, security systems, and machinery. The switch offers easy installation with a 22mm panel cutout, customizable graphics, and optional wire leads and sockets, providing versatile solutions for demanding industrial applications. Order now for fast delivery and ensure your system's robust control interface.
Buy ULV7 anti-vandal switch now and experience unmatched durability and reliable operation in challenging environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FMBSS331?
You can click on the BUY or RFQ button to purchase ULV7FMBSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FMBSS331?
You can download the ULV7FMBSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FMBSS331?
E-SWITCH
