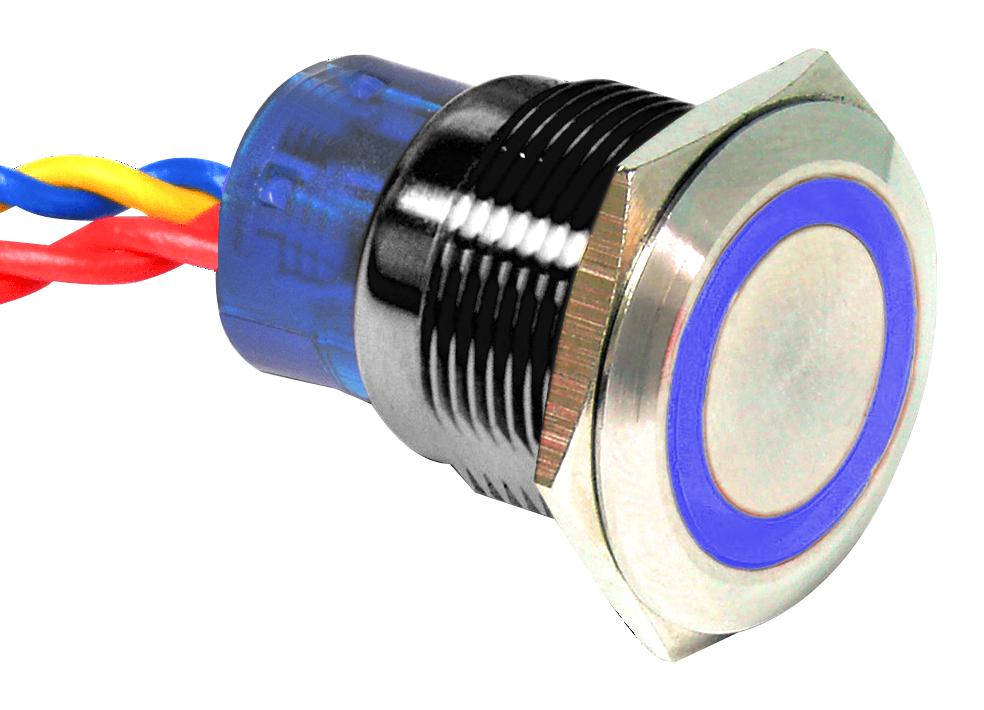

E-SWITCH ULV7FMG11341 Vandal-Resistant Switch
The ULV7 series anti-vandal switch offers robust, vandal-resistant design suitable for demanding environments. Featuring a 22mm diameter panel cutout, it provides various actuator options, illumination symbols, and wiring configurations. Its IP67-rated moisture protection ensures durability against water and dust ingress. The switch supports SPDT or DPDT contact arrangements, operates at voltages from 3V to 250VAC, and has a mechanical life of up to 1,000,000 cycles. It is suitable for applications requiring reliable, tamper-resistant, control, or navigation functions in harsh settings.
E-SWITCH ULV7FMG11341 Vandal-Resistant Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Panel Thickness: 1-10mm
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Moisture Protection: IP67
- Dimensions: 25mm diameter, multiple terminal configurations, various actuator styles
- Wire Lengths: 300mm or 500mm options with AWG 24 or 18 wires, UL rated UL1015/UL3385
- Certifications: UL and cULus Listed
Buy the Vandal-Resistant Switch Series ULV7: ULV7FMG11341
Discover the ULV7 series vandal-resistant switch, designed for demanding environments requiring water, dust, and tamper resistance. It features IP67 rated protection, multiple wiring options, and illumination symbols suitable for control panels, outdoor installations, and industrial machinery. With supporting SPDT or DPDT contacts and a 22mm diameter fit, it’s easy to integrate. Its high durability ensures long-lasting performance, making it the ideal choice for those seeking reliable, tamper-proof switching solutions in harsh conditions. Buy online now to upgrade your control systems with confidence.
Order your ULV7 Series vandal-resistant switch today and enhance your control systems with durable, waterproof, and reliable switching solutions.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FMG11341?
You can click on the BUY or RFQ button to purchase ULV7FMG11341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FMG11341?
You can download the ULV7FMG11341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FMG11341?
E-SWITCH
