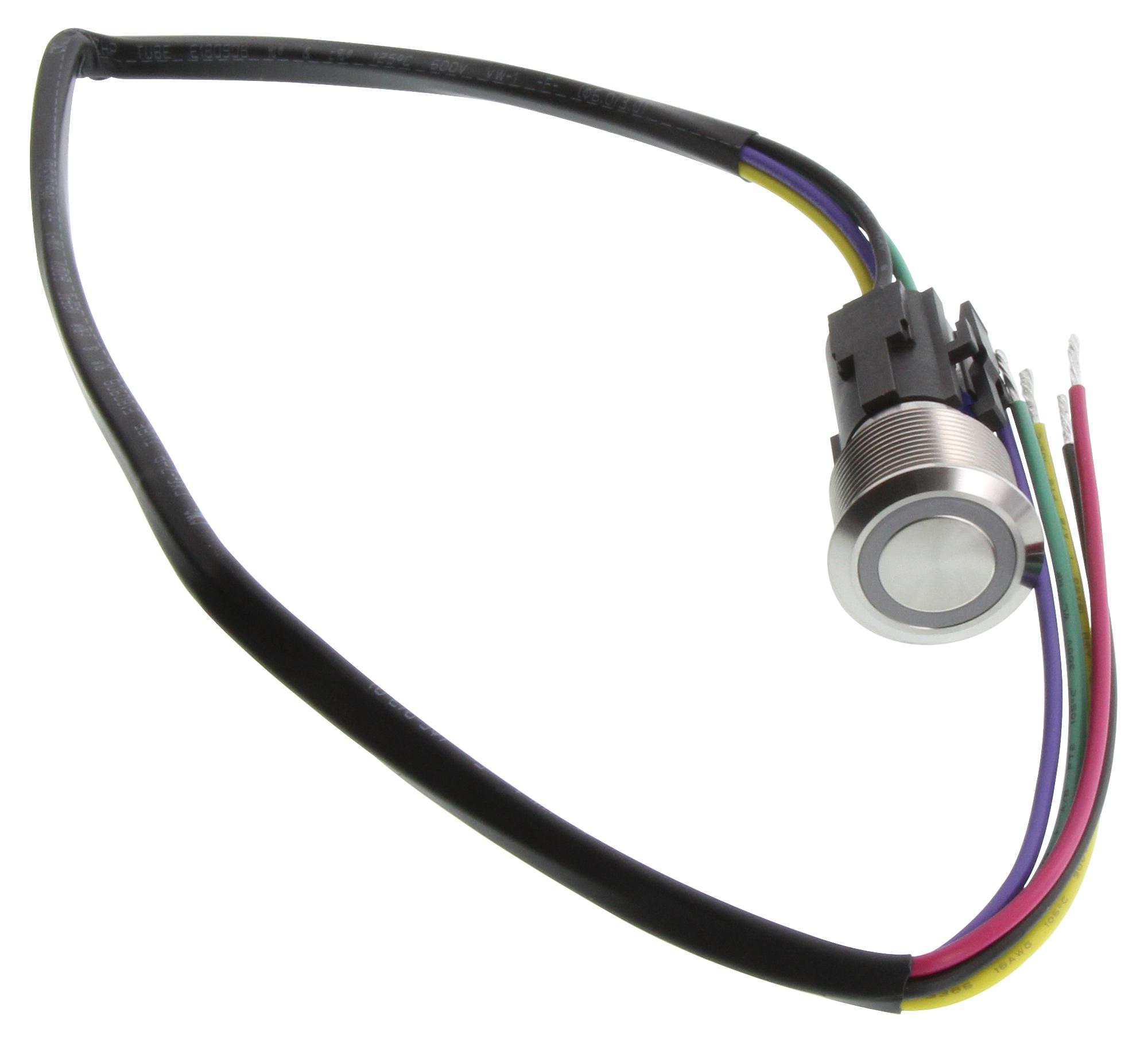

E-SWITCH ULV7FPBSS331 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch is designed for high durability with a mechanical life of 1,000,000 cycles for momentary and 500,000 cycles for latching operations. It features IP67 moisture protection, a 22mm panel cutout, and options for ring or ring/power symbol illumination. Available in SPDT and DPDT configurations, it includes soldered wire leads (300mm long), detachable sockets, and molded backs with wire leads (500mm). Suitable for harsh environments, it has a contact resistance of 50mQ, UL certification, and is ideal for security, industrial, and control panel applications.
E-SWITCH ULV7FPBSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ
- Ingress Protection: IP67
- Panel Cutout: 22mm diameter
- Illumination Options: Ring or Ring/Power symbols, voltage options from 1.3V to 220V
- Terminals: SPDT or DPDT
- Wire Leads: 300mm or 500mm lengths, 24-18 AWG with UL ratings
- Operating/Storage Temperature: -20°C to 55°C
- Housing Material: Durable plastic, stainless steel options available
- Agency Approvals: cURus, UL Certified
Buy the Vandal Series ULV7 Anti-Vandal Switch: ULV7FPBSS331
Enhance your security solutions and industrial control panels with the durable ULV7 series anti-vandal switch. Featuring IP67 moisture protection, high cycle life, and multiple illumination options, this switch is ideal for harsh environments. Its robust construction in SPDT or DPDT configurations, with long wire leads and available socket adapters, ensures easy integration and reliable operation. Whether used in security, machinery, or panel applications, this switch guarantees consistent performance and operational excellence. Purchase online now for fast delivery and trusted quality.
Order your Vandal Series ULV7FPBSS331 anti-vandal switch today and ensure your security and industrial systems operate with dependable durability and IP67 protection.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FPBSS331?
You can click on the BUY or RFQ button to purchase ULV7FPBSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FPBSS331?
You can download the ULV7FPBSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FPBSS331?
E-SWITCH
