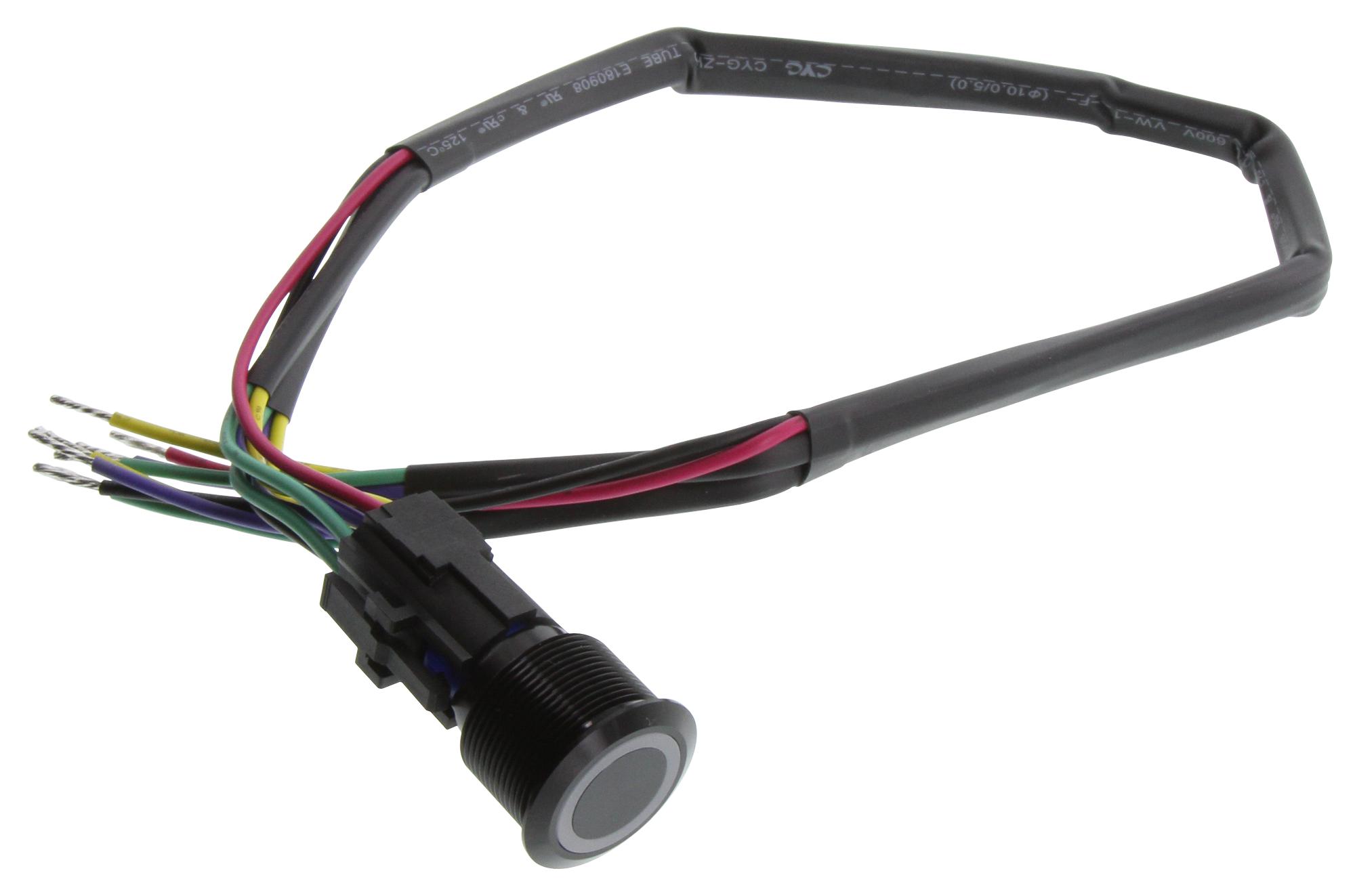

E-SWITCH ULV7FPG11311 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch offers durable, vandal-resistant design suitable for rugged environments. Features include IP67 moisture protection, a 22mm diameter panel cutout, and illumination options with ring or ring/power symbols. Available with SPDT and DPDT configurations, these switches have a mechanical life of 1,000,000 cycles (momentary) and a contact resistance of 50mΩ, coupled with UL certification for safety and quality. Wires and custom graphics can be tailored to project needs, making this switch ideal for industrial, security, and control applications requiring high durability and reliable performance.
E-SWITCH ULV7FPG11311 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: SPDT: 2.5N; DPDT: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cULus
- Housing Diameter: 22mm
- Illumination Voltage Options: 3V to 220V
- Wire Leads Lengths: 300mm to 500mm, compatible with various configurations
- Material: Stainless Steel, Anodized Aluminum
- Certification: UL Certified
Buy the Buy Industrial Vandal-Resistant Switch Part Number ULV7FPG11311 Online
Purchase the ULV7 Series Anti-Vandal Switch online today for robust protection, IP67 moisture resistance, and customizable features. Perfect for demanding industrial or security environments, this switch offers long-lasting operation with a mechanical life of 1,000,000 cycles and UL certification for safety. With multiple wire options, illumination styles, and configurations including SPDT and DPDT, you can easily select the ideal switch for your application. Reliable, durable, and easy to install—order now to enhance your control system’s performance.
Order your ULV7 Series vandal-proof switch today and ensure the high durability and reliable control performance your industrial projects require.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FPG11311?
You can click on the BUY or RFQ button to purchase ULV7FPG11311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FPG11311?
You can download the ULV7FPG11311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FPG11311?
E-SWITCH
