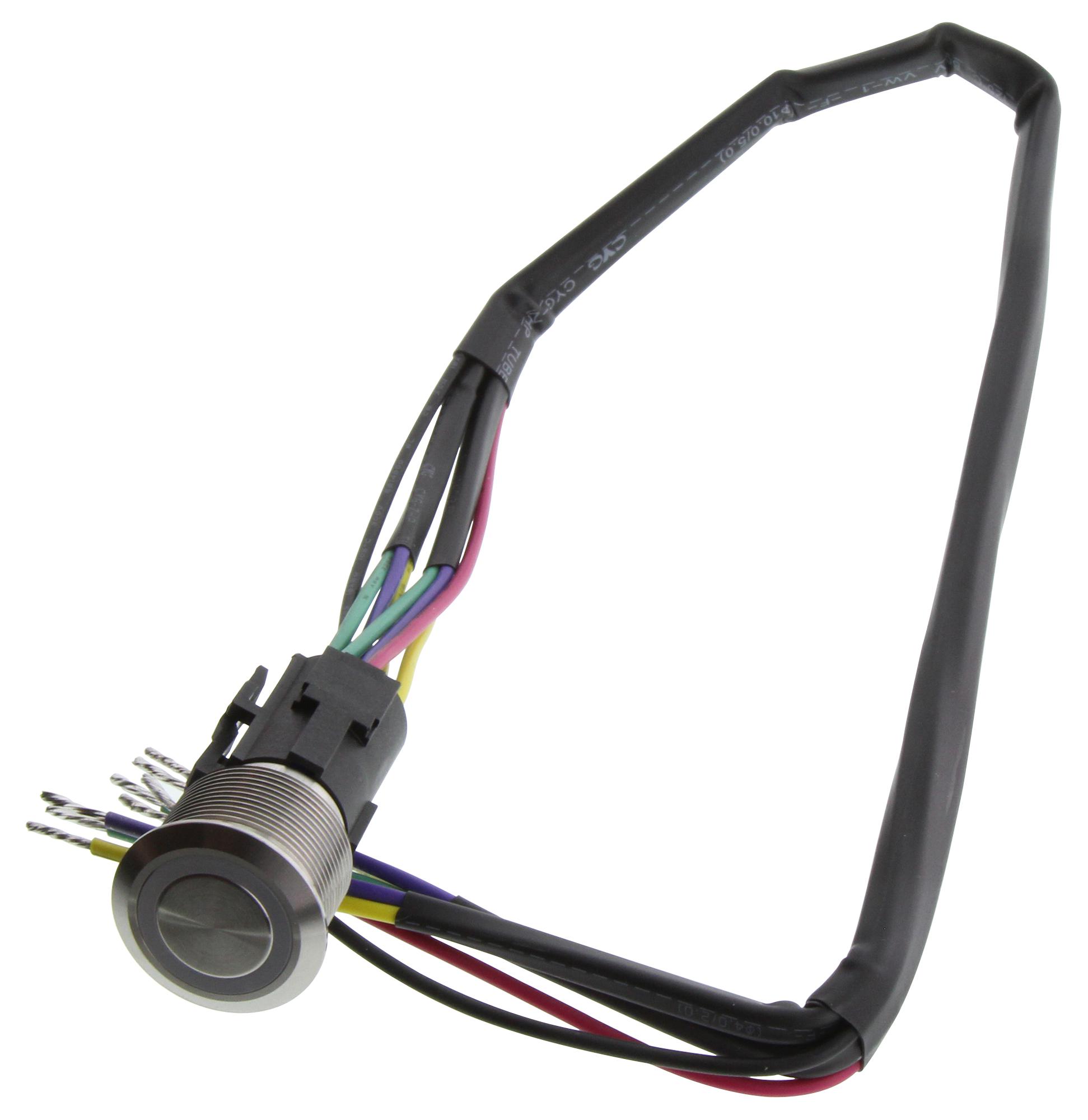

E-SWITCH ULV7FPGSS341 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch offers high durability with a mechanical life of 1,000,000 cycles for momentary and 500,000 for latching, rated at 3A, 125/250VAC. Its IP67 moisture protection and robust stainless steel or anodized aluminum housing make it suitable for harsh environments. Features include different actuator styles, illumination options, and wiring configurations like soldered leads or detachable sockets. Designed for security and durability, it is ideal for industrial, transportation, and kiosk applications requiring vandal-resistant, weatherproof switching solutions.
E-SWITCH ULV7FPGSS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ
- Insulation Resistance: 1000 MQ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
- Body Diameter: 22mm
- Illumination Voltage Options: 3-220V
- Wire Lengths: 300mm and 500mm options
- Housing Materials: Stainless Steel, Anodized Aluminum
- Thread Size: M22 x 1.0
- Connector Types: Soldered Leads, Detachable Socket
- Switch Functions: Pushbutton, Keylock, Navigation, Dip, Rotary, Slide, Snap Action
Buy the Vandal-Resistant Switch Series ULV7: ULV7FPGSS341
Purchase the ULV7 Series Anti-Vandal Switch online today to ensure secure, weatherproof switching solutions for industrial, security, and kiosk applications. Featuring IP67 protection, multiple wiring and actuator configurations, and high durability cycles, this switch offers reliable performance in harsh environments. Its robust construction and customizable illumination make it ideal where vandal resistance and weather resistance are essential. Order now to benefit from quick shipping and expert support, and enhance your security or automation systems with this engineered heavy-duty switch.
Get ULV7FPGSS341 today—built for vandal-proof durability and reliable operation in tough environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FPGSS341?
You can click on the BUY or RFQ button to purchase ULV7FPGSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FPGSS341?
You can download the ULV7FPGSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FPGSS341?
E-SWITCH
