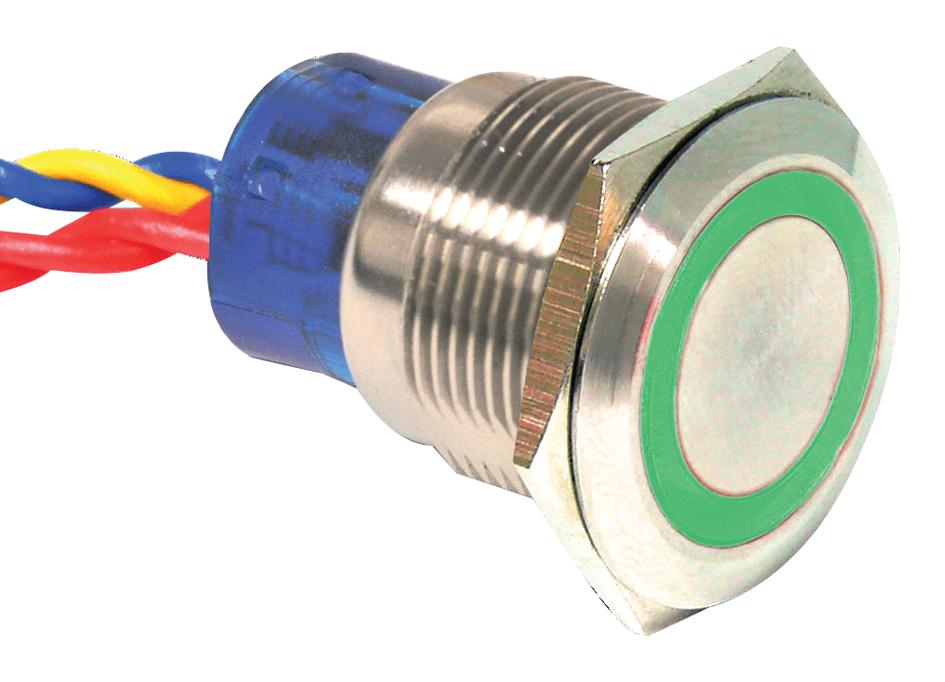

E-SWITCH ULV7FWBSS331 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch is a robust, IP67-rated device designed for industrial and security applications. Featuring a 22mm diameter panel cutout, it supports contact resistance of 50mΩ, insulation resistance of 1000MΩ at 500VDC, and dielectric strength of 2000VAC. Available with SPDT or DPDT contact arrangements, it incorporates illumination options, and resistance to moisture, impact, and mechanical cycles. The switch is suitable for panel thicknesses of 1-10mm, with actuators, and optional custom graphics for enhanced visibility and functionality.
E-SWITCH ULV7FWBSS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000MΩ @ 500VDC
- Dielectric Strength: 2000VAC
- Operating Temperature: -20°C to 55°C
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole 2.5N; Double Pole 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Housing Dimensions: approximately 0.70 in (17.8 mm) diameter, with ring/illumination options
- Termination: Soldered wire leads (300mm long), or screw terminals
- Material: Stainless Steel actuator, robust plastic housing
- Certifications: UL Listed, cURus approved
Buy the Vandal Switch Series ULV7: ULV7FWBSS331
Order the ULV7 Series Anti-Vandal Switch online today for reliable operation in tough environments. Featuring IP67 water resistance, robust stainless steel construction, multiple contact options, illumination features, and panel mounting ease. Perfect for industrial, security, and control systems, it ensures long-lasting performance with a mechanical life of over a million cycles. Designed to withstand impact, moisture, and temperature extremes, this switch offers customizable graphics and certified safety standards, making it ideal for demanding security applications and control panels.
Get ULV7 series anti-vandal switch today—built for precision, long-lasting durability, and resistance to harsh environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FWBSS331?
You can click on the BUY or RFQ button to purchase ULV7FWBSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FWBSS331?
You can download the ULV7FWBSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FWBSS331?
E-SWITCH
