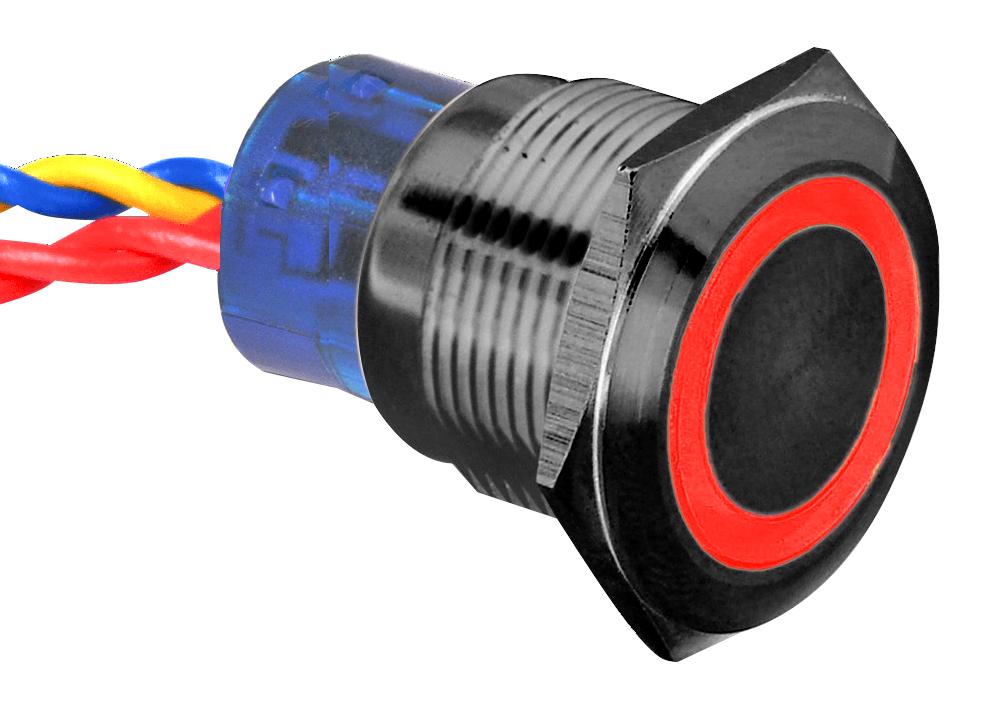

E-SWITCH ULV7FWG11311 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch offers high durability with a panel cutout of 22mm diameter and features IP67 moisture protection. Designed for rugged applications, it supports both SPDT and DPDT contact arrangements, with a contact resistance of 50mΩ. Suitable for various modes including pushbutton, keylock, rotary, and rocker switches, it has a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles. Its sealed construction ensures reliable operation in harsh environments, making it ideal for industrial control systems, security panels, and outdoor equipment.
E-SWITCH ULV7FWG11311 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- IP67 moisture protection rating
- Panel Thickness: 1-10mm
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Seal: Sealed for harsh environments
- Size: 22mm diameter panel cutout
- Terminal Type: Soldered wire leads, 300mm long
- Material: Metal and plastic components
- Standards: UL Certified, cURus Approved
Buy the Buy Vandalproof Switch Part Number ULV7FWG11311 Online
Purchase the anti-vandal switch ULV7FWG11311 online today for industrial, security, and outdoor applications. This rugged switch features IP67 protection, supporting 3A at 125/250VAC, and offers a long mechanical and electrical lifespan. Its sealed hermetic design ensures operation in harsh environments, making it ideal for security panels, outdoor equipment, and control systems. With a 22mm panel cutout, multiple contact options, and high durability, buying online guarantees fast delivery and reliable product support for your equipment needs.
Buy Vandalproof Switch ULV7FWG11311 now and experience unmatched reliability and rugged performance for industrial control panels.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FWG11311?
You can click on the BUY or RFQ button to purchase ULV7FWG11311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FWG11311?
You can download the ULV7FWG11311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FWG11311?
E-SWITCH
