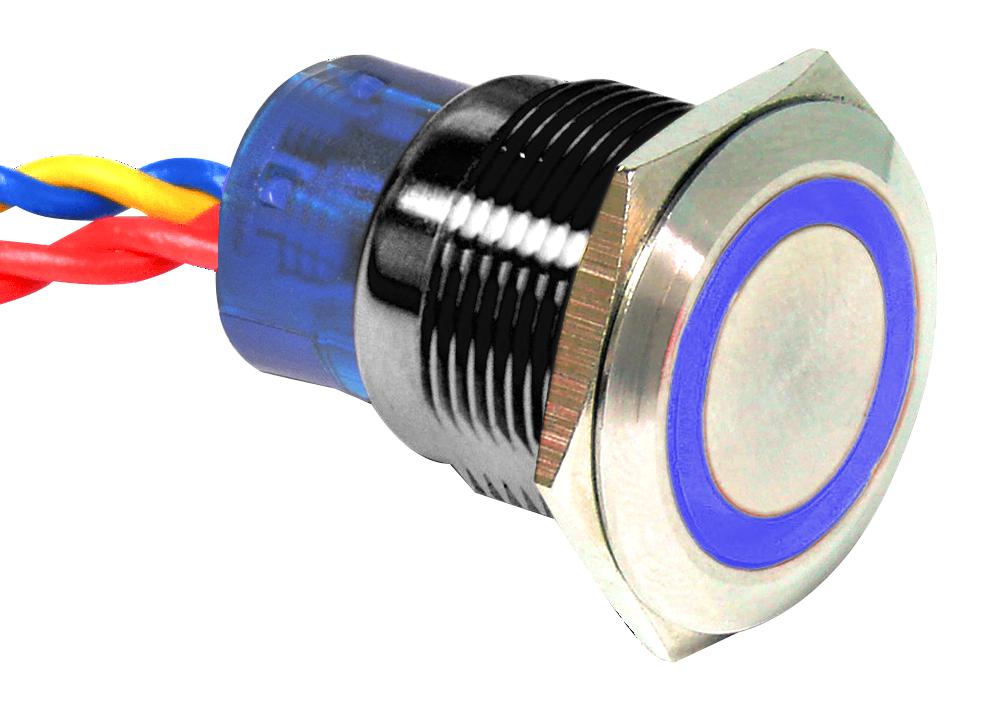

E-SWITCH ULV7FWG11341 Anti-Vandal Switch
The ULV7 Series Anti-Vandal Switch is a robust, UL-certified control component designed for industrial and automation applications. Featuring a 22mm diameter panel cutout, it offers SPDT and DPDT contact arrangements with IP67 moisture protection and rugged impact resistance. The switch supports multiple illumination voltage options, with stainless steel and anodized finishes, and is available with various actuator styles, including flat, ring, and power symbols. Its high mechanical and electrical life ratings ensure durability for demanding environments, making it ideal for industrial controls, machine interfaces, and security systems.
E-SWITCH ULV7FWG11341 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ at 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Panel Cutout: 22mm diameter
- IP67 rated moisture protection
- Actuator options: Flat, ring, power symbol, with LED illumination voltage options from 3V to 220V
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Material: Stainless steel, anodized aluminum
- Terminal type: Soldered wire leads, 300mm long
- Thread size: M22 x 1.0
Buy the Buy ULV7 Series Anti-Vandal Switch Part Number ULV7FWG11341 Online
Order the ULV7 Series Anti-Vandal Switch online now to ensure reliable performance in industrial and security applications. Featuring IP67 moisture resistance, stainless steel construction, multiple illumination options, and a robust design, this switch guarantees long-lasting durability and high electrical and mechanical lifecycle. Its compact 22mm diameter panel fit makes it suitable for tight spaces, while ANSI safety standards are met with UL certification. Perfect for control panels, access locks, and machinery requiring vandal-proof controls, this switch is essential for demanding environments.
Get ULV7 Series Anti-Vandal Switch ULV7FWG11341 today—built for industrial durability and high-impact environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7FWG11341?
You can click on the BUY or RFQ button to purchase ULV7FWG11341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7FWG11341?
You can download the ULV7FWG11341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7FWG11341?
E-SWITCH
