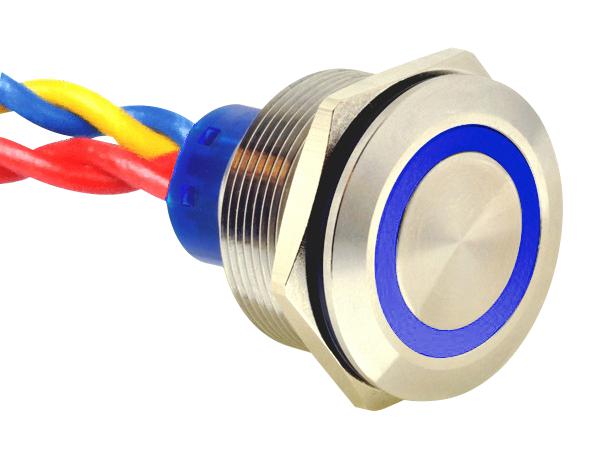

E-SWITCH ULV8FMBSS344 Anti-Vandal Switch
The ULV8 Series Anti-Vandal Switch is a robust, IP67-rated device designed for demanding environments. It features a 25mm diameter panel cutout, contact resistance of 50mΩ, and an insulation resistance of 1000 MΩ at 500VDC. Available with SPDT or DPDT contact arrangements, it supports electrical ratings of 3A at 125/250VAC, with a mechanical life of 1,000,000 cycles (momentary) and 500,000 (latching). The switch includes soldered or detachable wire options, operates from -20°C to 55°C, and is UL and cURus certified for safety and reliability.
E-SWITCH ULV8FMBSS344 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Agency Approvals: cURus
- Body Diameter: 25mm
- Wire Lengths: 300mm or 500mm options
- Wire Gauge: 24AWG or 18AWG UL rated cables
- Wiring Options: Soldered, detachable socket, molded back with leads
Buy the Vandal Resistant Switch Series ULV8: ULV8FMBSS344
Order the ULV8 Series Anti-Vandal Switch online today to ensure durable, IP67-rated protection for your application. Featuring a 25mm diameter with SPDT or DPDT contact options, this switch supports 3A at 125/250VAC, with a mechanical life of over 1 million cycles. It includes wiring options of 300mm or 500mm, UL and cURus certifications, and is designed for easy installation in demanding environments. Secure your equipment now with this highly reliable, robust switch that guarantees performance and safety.
Buy ULV8 Series Anti-Vandal Switch ULV8FMBSS344 now and experience unmatched reliability and performance in harsh environments.
