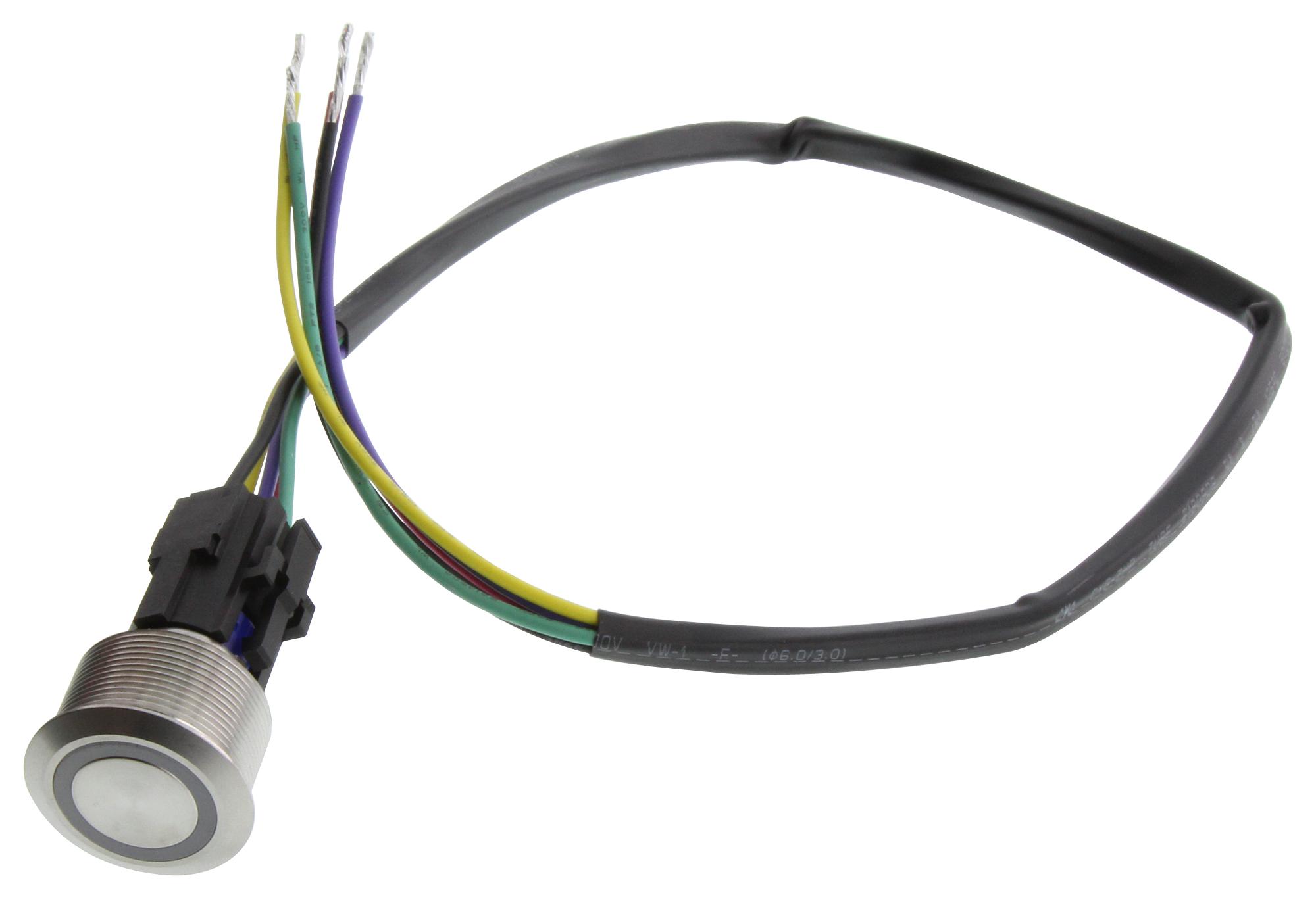

E-SWITCH ULV8FP3SS311 Anti-Vandal Switch
The ULV8 Series Anti-Vandal Switch is a robust, IP67-rated switch designed for industrial and security applications. Featuring a 25mm diameter panel cutout, it offers options such as pushbutton, DIP, keylock, navigation, rocker, rotary, slide, snap action, tactile, and toggle switches. With a mechanical life of up to 1 million cycles and electrical life of 50,000 cycles, it includes features like LED illumination, various terminal configurations, and corrosion-resistant materials. Suitable for environments requiring secure, impact-resistant, and reliable switching solutions, it is compliant with UL and CSA standards.
E-SWITCH ULV8FP3SS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Panel Cutout: 25mm diameter
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Waterproof Rating: IP67
- Wire Lead Lengths: 300mm or 500mm options available
- Thread Size: M25 x 1.0 mm
- Terminal Options: Multiple configurations including solderlug, wire leads, detachable socket
- Material: Stainless steel, anodized, or molded back options
- Impact Protection: Yes
- Agency Approvals: cURus
Buy the Vandal Series Anti-Vandal Switch: ULV8FP3SS311
Discover the ULV8FP3SS311 anti-vandal switch, engineered for high durability and impact resistance. Featuring IP67 waterproof rating, stainless steel construction, and multiple switch options like pushbutton, DIP, keylock, and slide, it is ideal for secure industrial and security applications. This switch ensures reliable operation with a high cycle life, extensive temperature range, and UL/CSA certifications. Easy to install with various terminal configurations, it offers long-lasting performance in demanding environments. Purchase online today for supreme safety and dependability.
Buy ULV8FP3SS311 anti-vandal switch now and experience unmatched durability and reliable performance in harsh environments.
