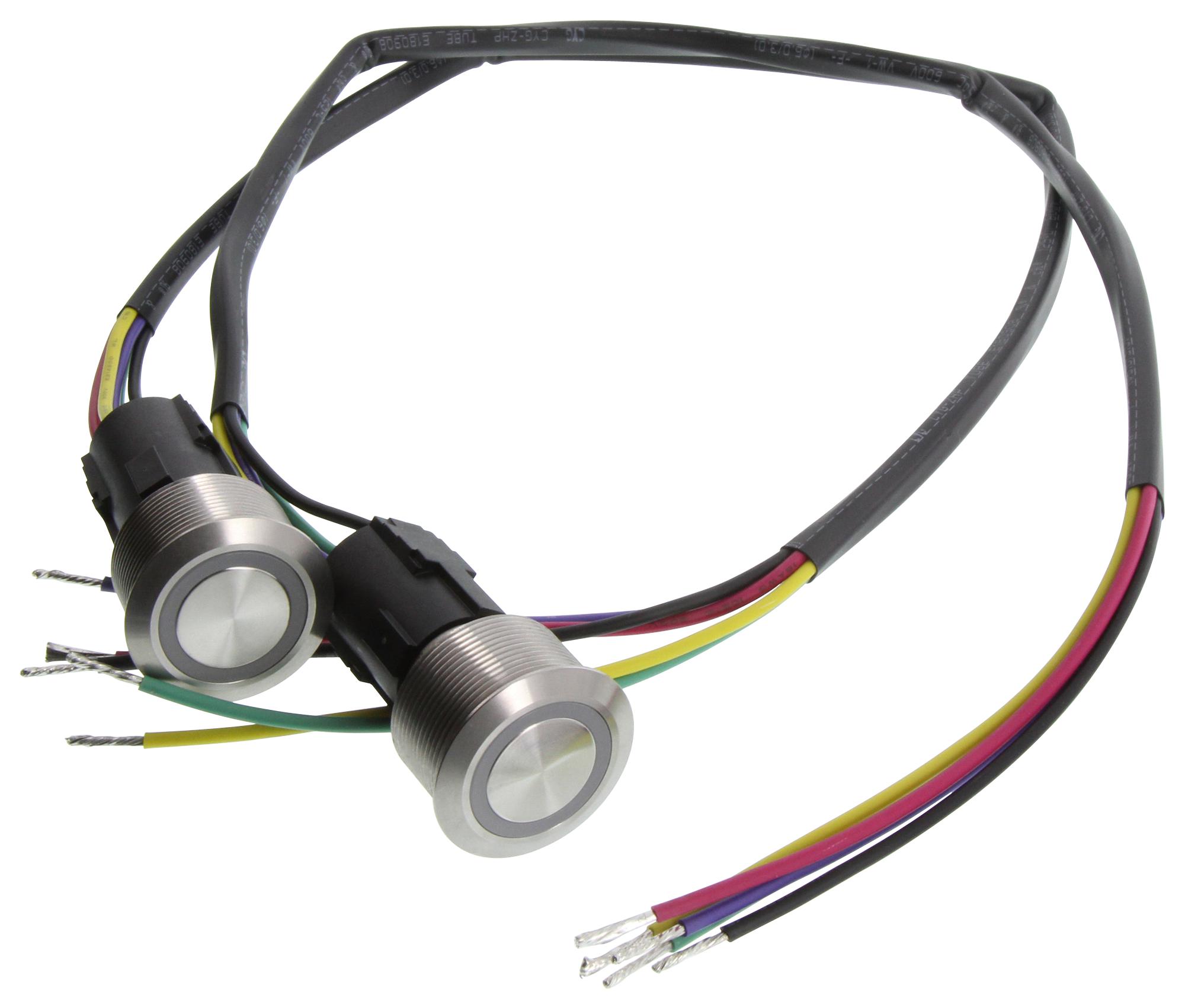

E-SWITCH ULV8FPBSS344 Anti-Vandal Switch
The ULV8 series anti-vandal switch is a robust and reliable component designed for industrial applications requiring durability and security. Featuring a 25mm diameter panel cutout, the switch supports multiple functions including SPDT, DPDT, and snap action types. It offers IP67 moisture protection, with electrical ratings of 3A at 125/250VAC, mechanical life of 1,000,000 cycles (momentary) and 500,000 cycles (latching). With options for illuminated, detachable socket, wire leads, and various actuator styles, this switch ensures long-lasting performance in harsh environments.
E-SWITCH ULV8FPBSS344 Anti-Vandal Switch Specifications:
- Electrical Rating: 3A, 125/250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Panel Cutout Size: 25mm diameter
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Moisture Protection: IP67
- Actuator Options: Various styles including keys, navigation, pushbutton, rocker, rotary, slide, snap action, tactile, toggle, and keypad
- Wire Leads Lengths: 300mm or 500mm, with AWG 24 or 18 options
- Thread Size: M25 x 1.0 mm
- Terms of Use: Suitable for harsh industrial environments, with UL and CSA approvals
Buy the ULV8 Series Anti-Vandal Switch – Reliable Industrial Detection Switches for Industrial Applications
Order the ULV8 series anti-vandal switch today for secure and reliable operation in harsh industrial environments. Featuring IP67 moisture protection, multi-function options including SPDT, DPDT, and snap action, and options for illumination and wire leads, this switch ensures long-term durability and high performance. Easy to install with a 25mm diameter panel cutout, it is suitable for control systems, security devices, and industrial machinery. Experience quality, robustness, and ease of ordering online now.
Get ULV8 series anti-vandal switch today—built for precision, durability, and long-lasting performance in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH ULV8FPBSS344?
You can click on the BUY or RFQ button to purchase ULV8FPBSS344 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV8FPBSS344?
You can download the ULV8FPBSS344 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV8FPBSS344?
E-SWITCH
