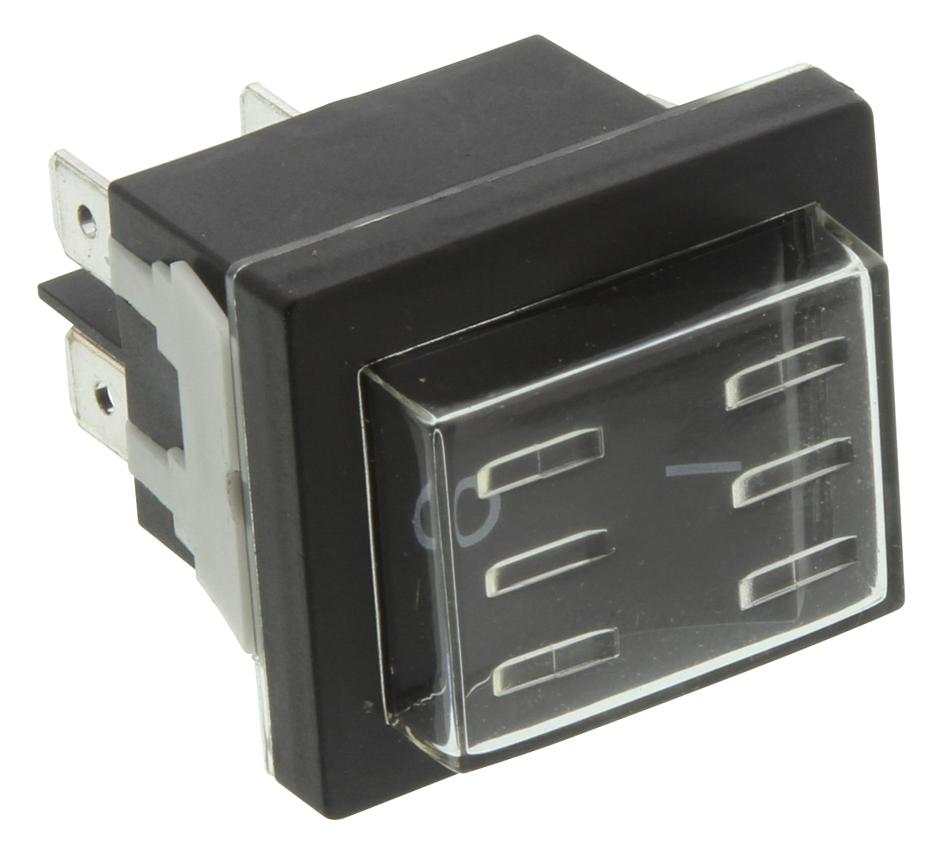

E-SWITCH WB24ED1121ACCKF05 industrial power rocker switch
The WB24ED1121-ACC-KF05 is a durable DPST power rocker switch designed for industrial use, providing reliable ON-OFF control with dust and water resistance. Made with a polyamide 6/6 body and silver alloy contacts, it features a 6.3mm terminal tab size, IP55 ingress protection, and a temperature range from -20°C to 65°C. Equipped with a rubber seal for environmental sealing, mounting ears for secure installation, and an actuator, this switch ensures optimal performance and durability in demanding conditions, making it ideal for panel mounting in various industrial control systems.
E-SWITCH WB24ED1121ACCKF05 industrial power rocker switch Specifications:
- Contact Material: Silver Plated Copper
- Contact Ratings: 20A @ 125VAC and 250VAC, 1.5HP 125/250VAC
- Contact Resistance: 50mΩ MAX. INITIAL
- Insulation Resistance: 500MG MIN. @ 500VDC
- Dielectric Strength: 1500VAC for 1 Minute
- IP Rating: IP55
- Operating Temperature: -20°C to 65°C
- Terminal Size: 6.3mm
- Body Material: Polyamide 6/6
- Seal: MVQ rubber
- Dimensions: 34.60mm x 31.20mm x 11.90mm
- Actuator Color: Black
- Mounting Ears: Provided
Buy the E-Switch Series Switch: WB24ED1121-ACC-KF05
Order the E-Switch WB24ED1121-ACC-KF05 industrial power rocker switch online today and enjoy fast shipping and competitive prices. This rugged switch offers IP55 protection, operates efficiently within a temperature range of -20°C to 65°C, and features silver alloy contacts for reliable electrical performance. Its durable polyamide body and rubberseal ensure environmental protection, making it ideal for panel mounting in harsh industrial environments. Buy now to enhance your control systems with a dependable and easy-to-install switch designed for demanding applications.
Buy E-Switch WB24ED1121ACCKF05 now and experience unmatched reliability and industrial-grade performance.
Frequently Asked Questions
Where can I buy E-SWITCH WB24ED1121ACCKF05?
You can click on the BUY or RFQ button to purchase WB24ED1121ACCKF05 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part WB24ED1121ACCKF05?
You can download the WB24ED1121ACCKF05 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of WB24ED1121ACCKF05?
E-SWITCH
