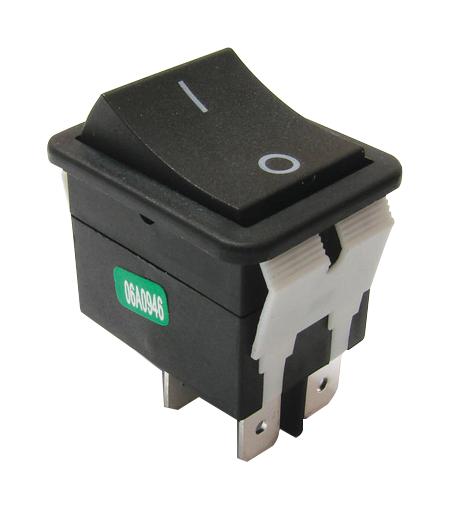

E-SWITCH WB24GE1121 Industrial Switch
The WB2 Series switch offers high performance with UL and TUV approvals, suitable for industrial applications. It features a 22mm x 30mm industry-standard cutout, IP55 dust and water protection, and a robust polyamide body. With ratings of 20A at 125/250VAC and 2.0HP, it is designed for reliable maintained or momentary operation across temperatures from -20°C to 65°C. The switch incorporates silver alloy contacts, ethylene propylene rubber insulators, and silver-plated brass terminals, ensuring durability and safety for demanding industrial environments.
E-SWITCH WB24GE1121 Industrial Switch Specifications:
- Rating: Maintained 20A, 125/250VAC, 2.0HP at 125/250VAC, 18(12)A 250VAC 5E4 T85, Momentary 20A 125/250VAC, 4.5HP 125/250VAC, 18(10)A 250VAC 5E4 T85
- Temperature Range: -20°C to 65°C
- Contact Resistance: Max 50mΩ
- Insulation Resistance: Min 500MΩ at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Protection Level: IP55
- Materials: Body - Polyamide 6/6, Actuator - Polyamide 6/6, Mounting Ears - Polyamide 6/6, Rimmer Seat - Ethylene Propylene, Contacts - Silver Alloy, Terminals - Silver Plated Brass
- Panel Cutout: 22mm x 30mm
- Ratings include UL and TUV approvals for industrial safety and compliance.
Buy the Buy Industry Switch Part Number WB24GE1121 Online
Experience reliable performance with the WB24GE1121 industrial switch, engineered for demanding industrial environments. Its IP55 rating ensures protection against dust and water, making it ideal for panel mounting. Rated at 20A and supporting voltages up to 250VAC, it features durable silver alloy contacts, a polyamide body, and compliance with UL and TUV standards. Whether used as maintained or momentary switch, the WB24GE1121 offers long-lasting durability, safety, and dependable operation in industrial control systems. Purchase online today and elevate your automation projects.
Get WB24GE1121 today—designed for industrial durability, high current ratings, and IP55 dust and water resistance.
Frequently Asked Questions
Where can I buy E-SWITCH WB24GE1121?
You can click on the BUY or RFQ button to purchase WB24GE1121 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part WB24GE1121?
You can download the WB24GE1121 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of WB24GE1121?
E-SWITCH
