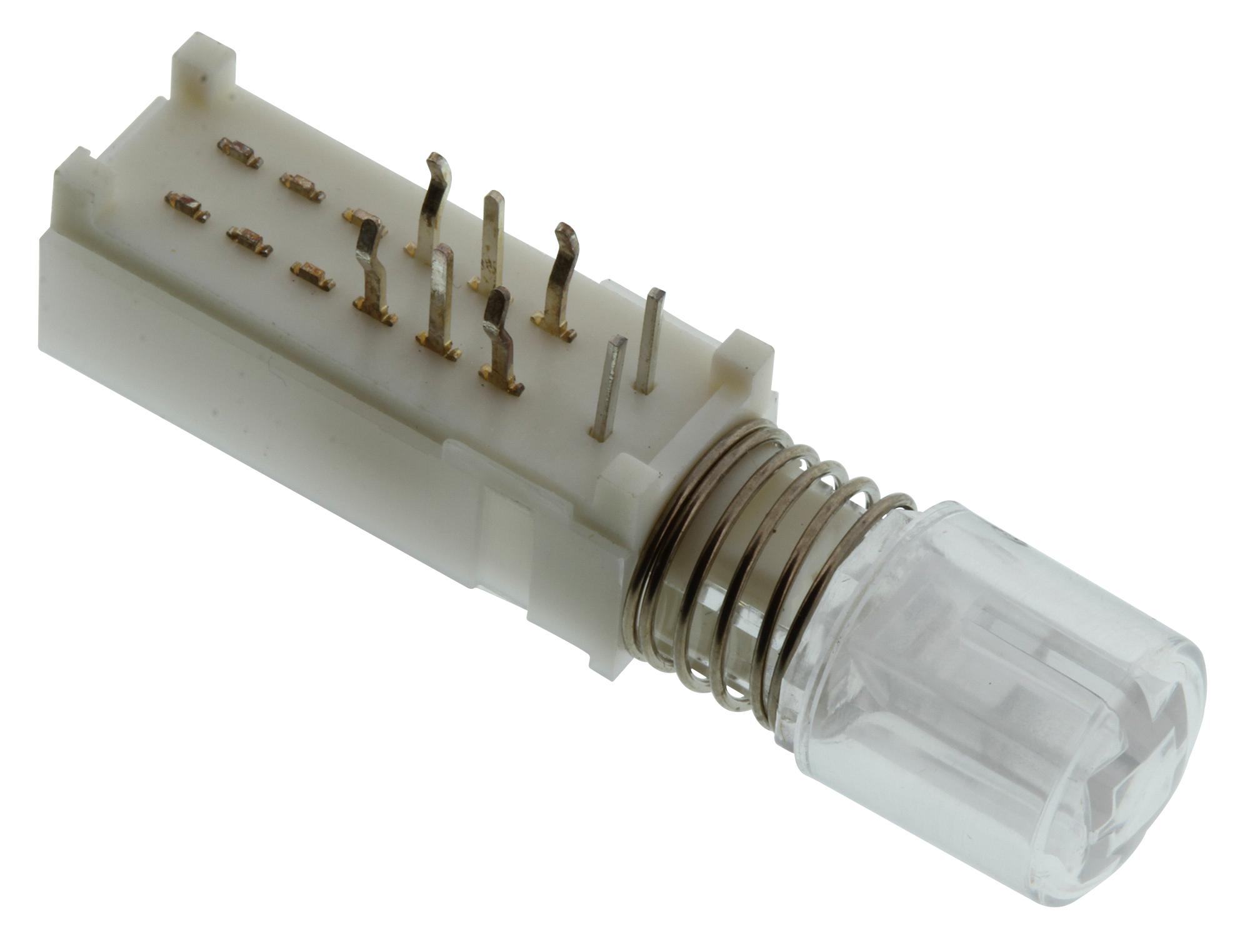

E-SWITCH WBL2UEEGBQR05CLR Illuminated Pushbutton Switch
The illuminated pushbutton switch from the Series WBL offers reliable mechanical operation with a life cycle of 10,000 cycles. It features a DPDT or 4PDT contact arrangement with a contact rating of 30VDC and 300mA, suitable for telecommunication, consumer electronics, medical equipment, and computer peripherals. The switch operates within a temperature range of 20°C to +70°C, has an insulation resistance of at least 100MΩ @ 500VDC, and withstands dielectric strength of 500VAC. Its full travel distance is approximately 3.30mm, with locking travel of about 2.50mm, and utilizes a silver contact material for enhanced durability.
E-SWITCH WBL2UEEGBQR05CLR Illuminated Pushbutton Switch Specifications:
- Mechanical Life: 10,000 cycles
- Force: 200 +/- 100 grams
- Travel: Full: 3.30 +/- 0.3mm; To Lock: 2.50 +/- 0.3mm
- Contact Arrangement: DPDT & 4PDT
- Contact Rating: 30VDC, 300mA
- Contact Resistance: 50mΩ (initial max)
- Operating Temperature: 20°C to +70°C
- Storage Temperature: -20°C to +70°C
- Insulation Resistance: 100MΩ minimum @ 500VDC
- Dielectric Strength: 500VAC
- Physical Dimensions: 15.00mm diameter button, travel 3.30mm, locking travel 2.50mm
- Color Options: Red-Green, Red-Blue, Yellow-Blue, Green-Blue, Green-Yellow, Silver
- Luminous Intensity: typical 350 at 20mA
- Voltage: 35VDC (typical), max 4.0VDC
- Current: 20mA
- Packaging: 84 pieces per tray
Buy the E+Switch Series WBL Illuminated Pushbutton: WBL2UEEGBQR05CLR
Purchase the E+Switch Series WBL illuminated pushbutton switch online today to ensure your electronic and telecommunication projects benefit from high durability, precise actuation, and a wide temperature tolerance. Its reliable contact configuration, 10,000-cycle lifespan, and various color options make it ideal for control panels, consumer devices, and medical equipment. Enjoy fast delivery and secure checkout to upgrade your systems with this dependable and easy-to-install switch designed for demanding industrial and electronic environments, providing consistent performance over time.
Buy E+Switch WBL2UEEGBQR05CLR illuminated pushbutton switch online now and experience reliable operation for telecommunications and electronic applications.
Frequently Asked Questions
Where can I buy E-SWITCH WBL2UEEGBQR05CLR?
You can click on the BUY or RFQ button to purchase WBL2UEEGBQR05CLR from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part WBL2UEEGBQR05CLR?
You can download the WBL2UEEGBQR05CLR datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of WBL2UEEGBQR05CLR?
E-SWITCH
