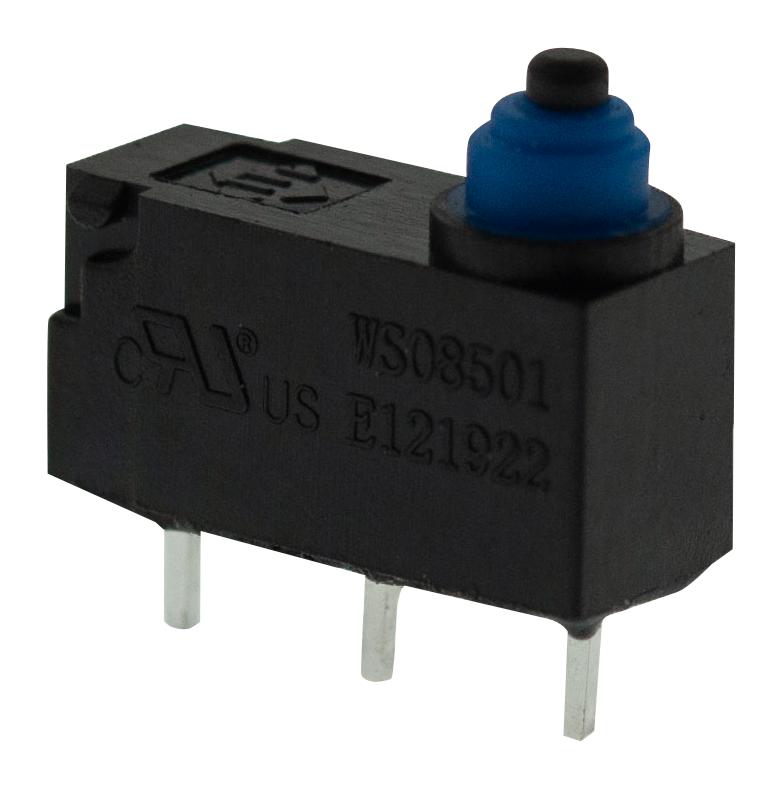

E-SWITCH WS0850100F070PA Snap Action Switch
The WS0850100F070PA is a WP series snap action switch designed for HVAC, household appliances, floor care, vending, automation, control, and medical devices. It features an IP67-rated, UL-approved construction with a single-pole double-throw (SPDT) contact configuration. The switch has a contact rating of 1A at 24V DC, a pin plunger actuator, and an operating force of 70 grams. It supports PCB pin termination, offers an electrical life of 10,000 cycles, and a mechanical life of 1,000,000 cycles. Key parameters include contact resistance up to 100mΩ, insulation resistance of at least 100MΩ at 500VDC, and dielectric strength of 600VAC, with temperature tolerance from -25°C to 85°C.
E-SWITCH WS0850100F070PA Snap Action Switch Specifications:
- Contact Rating: 1A @ 24VDC
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 10,000 cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min @ 500VDC
- Dielectric Strength: 600VAC
- Operating Temperature: -25°C to 85°C
- Ingress Protection: IP67
- Contact Arrangement: SPDT
- Actuation Force: 70 grams
- Actuator: Pin plunger
- Termination: PCB pins
- Approval: UL Listed
Buy the E-SWITCH Series WP Snap Action Switch WS0850100F070PA
Order the WS0850100F070PA switch online today to ensure seamless integration into your HVAC, appliances, or automation systems. This IP67-rated, UL-approved SPDT switch with a 1A@24VDC rating and 70g actuation force guarantees durability, high cycle life, and safety compliance. Its PCB pin termination makes installation straightforward, while the robust design supports demanding industrial and medical applications. Enjoy quick delivery, exceptional quality, and reliable performance by purchasing online now and improve your system's efficiency.
Buy WS0850100F070PA now and experience unmatched reliability and performance in automation and control solutions.
Frequently Asked Questions
Where can I buy E-SWITCH WS0850100F070PA?
You can click on the BUY or RFQ button to purchase WS0850100F070PA from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part WS0850100F070PA?
You can download the WS0850100F070PA datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of WS0850100F070PA?
E-SWITCH
